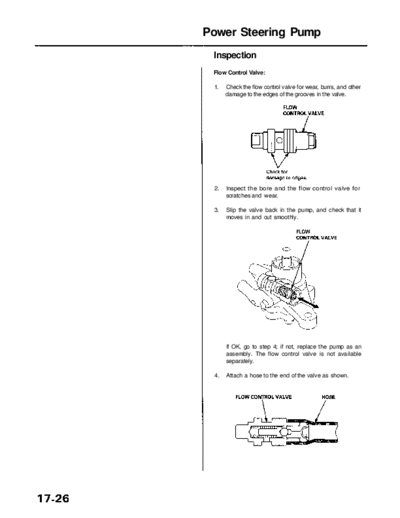

Image preview - the first page of the document
>> Download RL9604S17026A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Power Steering Pump
Inspection
Flow Control Valve:
1. Check the flow control valve for wear, burrs, and other
damage to the edges of the grooves in the valve.
2. Inspect the bore and the flow control valve for
scratches and wear.
3. Slip the valve back in the pump, and check that it
moves in and out smoothly.
If OK, go to step 4; if not, replace the pump as an
assembly. The flow control valve is not available
separately.
4. Attach a hose to the end of the valve as shown.
Main Menu Table of Contents
5. Submerge the valve in a container of power steering Ball Bearing Inspection/Replacement:
fluid or solvent, and blow in the hose. If air bubbles
leak through the valve at less than 98 kPa 1. Inspect the ball bearing by rotating the outer race
(1.0 kgf/cm2,14.2 psi), repair it as follows. slowly. If you feel any play (axial or radial) or rough-
ness is felt, replace the ball bearing.
6. Hold the bottom end of the valve with a open end
wrench.
7. Unscrew the seat in the top end of the valve, and 2. Remove and discard the ball bearing using a press
remove any shims, the relief check ball, relief valve as shown.
and relief valve spring.
8. Clean all the parts in solvent, dry them off, then
reassemble and retest the valve. If the flow control
valve tests OK, reinstall it in the pump. If the flow con-
trol valve still leaks air, replace the pump as an assem-
bly. The flow control valve is not available separately.
NOTE: If necessary, relief pressure is adjusted at
the factory by adding shims under the check ball
seat. If you found shims in your valve, be sure you
reinstall as many as you took out. 3. Install the new ball bearing using a press as shown.
