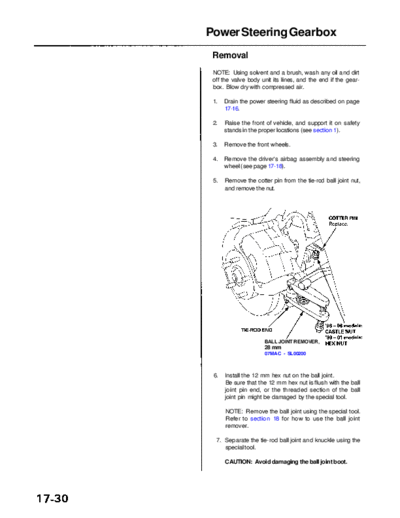

Image preview - the first page of the document
>> Download RL9604S17030A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Power Steering Gearbox
Removal
NOTE: Using solvent and a brush, wash any oil and dirt
off the valve body unit its lines, and the end if the gear-
box. Blow dry with compressed air.
1. Drain the power steering fluid as described on page
17-16.
2. Raise the front of vehicle, and support it on safety
stands in the proper locations (see section 1).
3. Remove the front wheels.
4. Remove the driver's airbag assembly and steering
wheel (see page 17-18).
5. Remove the cotter pin from the tie-rod ball joint nut,
and remove the nut.
BALL JOINT REMOVER,
28 mm
07MAC - SL00200
6. Install the 12 mm hex nut on the ball joint.
Be sure that the 12 mm hex nut is flush with the ball
joint pin end, or the threaded section of the ball
joint pin might be damaged by the special tool.
NOTE: Remove the ball joint using the special tool.
Refer to section 18 for how to use the ball joint
remover.
7. Separate the tie-rod ball joint and knuckle using the
special tool.
CAUTION: Avoid damaging the ball joint boot.
Main Menu Table of Contents
8. Remove the steering joint bolts, then disconnect the 10. Disconnect the feed line from the valve body unit
steering joint by moving the joint toward the column. upper side.
CAUTION: After disconnecting the feed line, plug or
seal the line fitting with a piece of tape or equivalent
to prevent foreign materials from entering the valve
body unit.
9. Remove the splash guard. 11. Remove the clamps from the line mounting cush-
ions, then remove the feed line from the cushions.
Main Menu Table of Contents
Power Steering Gearbox
Removal (cont'd)
12. Disconnect the three lines (sensor inlet line, 10 mm
return line and 6 mm return line) from the hoses.
CAUTION: After disconnecting the line, plug or
seal the line with a piece of tape or equivalent.
13. Remove the mounting brackets and steering gear-
box.
NOTE: Before removing the steering gearbox, place
a jack stand under the gearbox to support it.
CAUTION: Be careful not to bend or damage fluid
lines when removing the steering gearbox.
