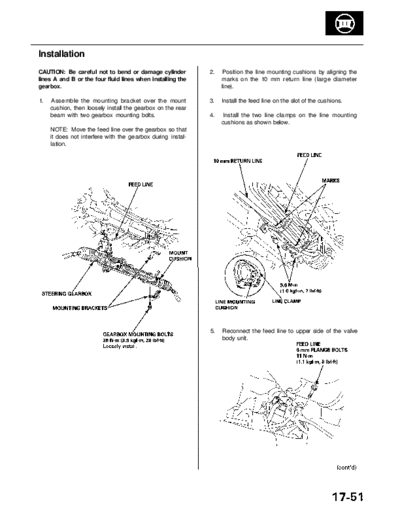

Image preview - the first page of the document
>> Download RL9604S17051A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Installation
CAUTION: Be careful not to bend or damage cylinder 2. Position the line mounting cushions by aligning the
lines A and B or the four fluid lines when installing the marks on the 10 mm return line (large diameter
gearbox. line).
1. Assemble the mounting bracket over the mount 3. Install the feed line on the slot of the cushions.
cushion, then loosely install the gearbox on the rear
beam with two gearbox mounting bolts. 4. Install the two line clamps on the line mounting
cushions as shown below.
NOTE: Move the feed line over the gearbox so that
it does not interfere with the gearbox during instal-
lation.
5. Reconnect the feed line to upper side of the valve
body unit.
Main Menu Table of Contents
Power Steering Gearbox
Installation (cont'd)
6. Reconnect the three lines (sensor inlet line, 10 mm 9. Install the steering joint, and reconnect the steering
return line and 6 mm return line) to the hoses. shaft and pinion shaft.
NOTE: NOTE: Make sure the steering joint is connected as
