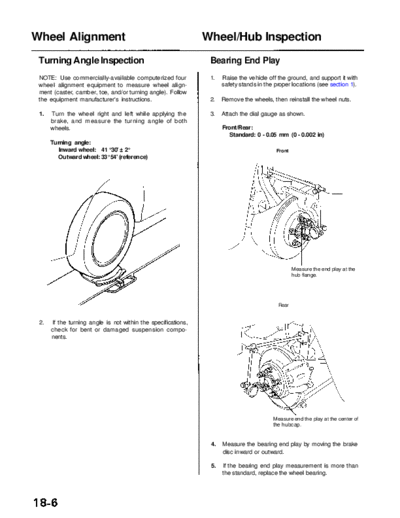

Text preview - extract from the document
Main Menu Table of Contents
Wheel Alignment Wheel/Hub Inspection
Turning Angle Inspection Bearing End Play
NOTE: Use commercially-available computerized four 1. Raise the vehicle off the ground, and support it with
wheel alignment equipment to measure wheel align- safety stands in the proper locations (see section 1).
ment (caster, camber, toe, and/or turning angle). Follow
the equipment manufacturer's instructions. 2. Remove the wheels, then reinstall the wheel nuts.
1. Turn the wheel right and left while applying the 3. Attach the dial gauge as shown.
brake, and measure the turning angle of both
wheels. Front/Rear:
Standard: 0 - 0.05 mm (0 - 0.002 in)
Turning angle:
Inward wheel: 41 ◦ Jabse Service Manual Search 2026 ◦ Jabse Pravopis ◦ onTap.bg ◦ Other service manual resources online : Fixya ◦ eServiceinfo
