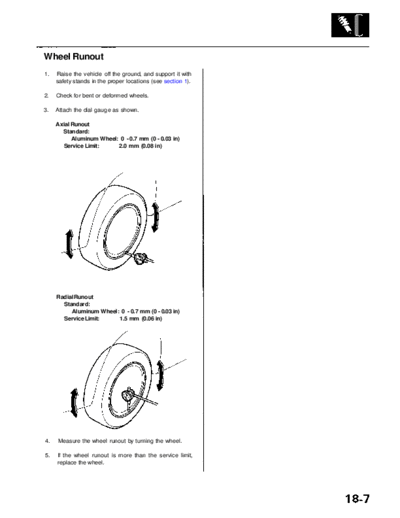

Image preview - the first page of the document
RL9604S18007A


>> Download RL9604S18007A documenatation <<

Text preview - extract from the document
            Main Menu                  Table of Contents




Wheel Runout
1.   Raise the vehicle off the ground, and support it with
     safety stands in the proper locations (see section 1).

2.   Check for bent or deformed wheels.

3.   Attach the dial gauge as shown.

     Axial Runout
       Standard:
           Aluminum Wheel: 0 - 0.7 mm (0 - 0.03 in)
       Service Limit:     2.0 mm (0.08 in)




     Radial Runout
       Standard:
          Aluminum Wheel: 0 - 0.7 mm (0 - 0.03 in)
       Service Limit:    1.5 mm (0.06 in)




4.   Measure the wheel runout by turning the wheel.

5.   If the wheel runout is more than the service limit,
     replace the wheel.
