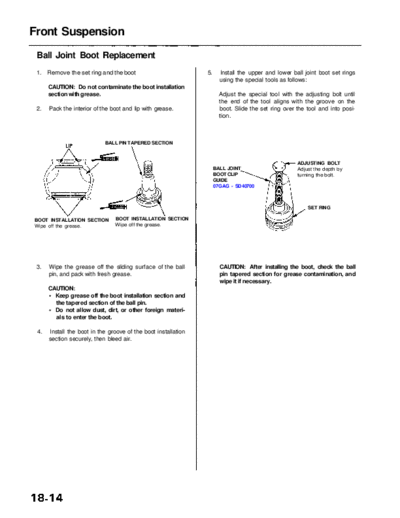

Image preview - the first page of the document
>> Download RL9604S18014A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Front Suspension
Ball Joint Boot Replacement
1. Remove the set ring and the boot 5. Install the upper and lower ball joint boot set rings
using the special tools as follows:
CAUTION: Do not contaminate the boot installation
section with grease. Adjust the special tool with the adjusting bolt until
the end of the tool aligns with the groove on the
2. Pack the interior of the boot and lip with grease. boot. Slide the set ring over the tool and into posi-
tion.
BALL PIN TAPERED SECTION
ADJUSTING BOLT
BALL JOINT Adjust the depth by
BOOT CLIP turning the bolt.
GUIDE
07GAG - SD40700
SET RING
BOOT INSTALLATION SECTION BOOT INSTALLATION SECTION
Wipe off the grease. Wipe off the grease.
3. Wipe the grease off the sliding surface of the ball CAUTION: After installing the boot, check the ball
pin, and pack with fresh grease. pin tapered section for grease contamination, and
wipe it if necessary.
CAUTION:
