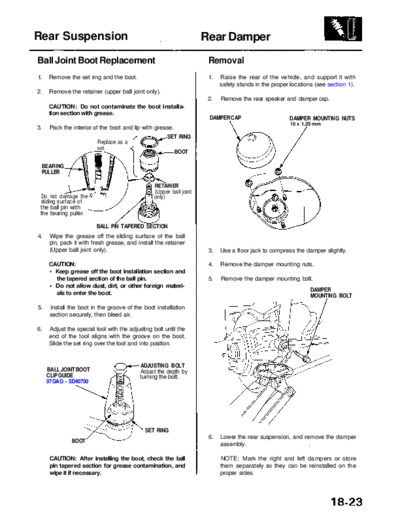

Image preview - the first page of the document



>> Download RL9604S18023A documenatation <<

Text preview - extract from the document

               Main Menu                  Table of Contents


Rear Suspension                                                      Rear Damper
Ball Joint Boot Replacement                                           Removal
1.   Remove the set ring and the boot.                                1.   Raise the rear of the vehicle, and support it with
                                                                           safety stands in the proper locations (see section 1).
2.   Remove the retainer (upper ball joint only).
                                                                      2.   Remove the rear speaker and damper cap.
     CAUTION: Do not contaminate the boot installa-
     tion section with grease.
                                                                      DAMPER CAP                      DAMPER MOUNTING NUTS
                                                                                                      10 x 1.25 mm
3.   Pack the interior of the boot and lip with grease.
                                                      SET RING
                         Replace as a
                         set.
                                                          BOOT

 BEARING
 PULLER

                                                 RETAINER
                                                 (Upper ball joint
 Do not damage the                               only)
 sliding surface of
 the ball pin with
 the bearing puller.

                        BALL PIN TAPERED SECTION
4.   Wipe the grease off the sliding surface of the ball
     pin, pack it with fresh grease, and install the retainer
     (Upper ball joint only).                                         3.   Use a floor jack to compress the damper slightly.

     CAUTION:                                                         4.   Remove the damper mounting nuts.
