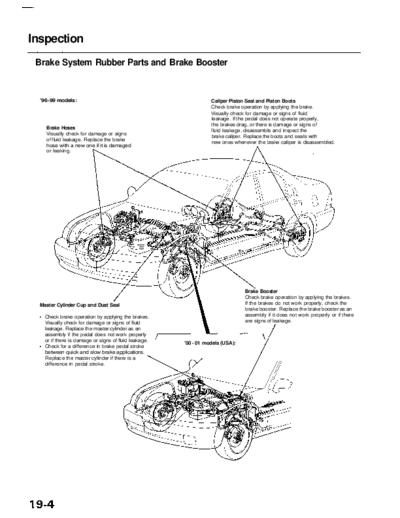

Image preview - the first page of the document



>> Download RL9604S19004A documenatation <<

Text preview - extract from the document

                 Main Menu                     Table of Contents


Inspection
 Brake System Rubber Parts and Brake Booster



  '96-99 models:                                                              Caliper Piston Seal and Piston Boots
                                                                              Check brake operation by applying the brake.
                                                                              Visually check for damage or signs of fluid
                                                                              leakage. If the pedal does not operate properly,
                                                                              the brakes drag, or there is damage or signs of
    Brake Hoses
                                                                              fluid leakage, disassemble and inspect the
    Visually check for damage or signs
                                                                              brake caliper. Replace the boots and seals with
    of fluid leakage. Replace the brake
                                                                              new ones whenever the brake caliper is disassembled.
    hose with a new one if it is damaged
    or leaking.




                                                                                            Brake Booster
                                                                                            Check brake operation by applying the brakes.
  Master Cylinder Cup and Dust Seal                                                         If the brakes do not work properly, check the
                                                                                            brake booster. Replace the brake booster as an
    Check brake operation by applying the brakes.                                           assembly if it does not work properly or if there
    Visually check for damage or signs of fluid                                             are signs of leakage.
    leakage. Replace the master cylinder as an
    assembly if the pedal does not work properly
    or if there is damage or signs of fluid leakage.
                                                                   '00 - 01 models (USA):
    Check for a difference in brake pedal stroke
    between quick and slow brake applications.
    Replace the master cylinder if there is a
    difference in pedal stroke.
