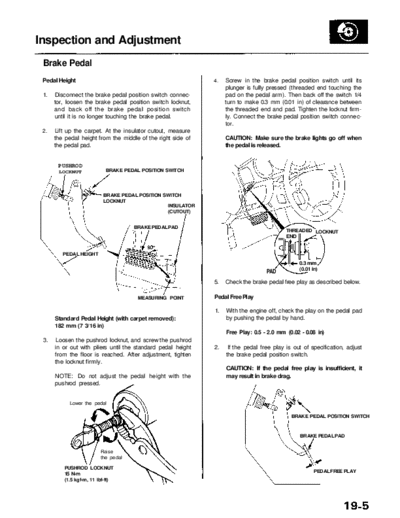

Image preview - the first page of the document



>> Download RL9604S19005A documenatation <<

Text preview - extract from the document

              Main Menu                 Table of Contents



Inspection and Adjustment
 Brake Pedal
 Pedal Height                                                 4.   Screw in the brake pedal position switch until its
                                                                   plunger is fully pressed (threaded end touching the
 1.   Disconnect the brake pedal position switch connec-           pad on the pedal arm). Then back off the switch 1/4
      tor, loosen the brake pedal position switch locknut,         turn to make 0.3 mm (0.01 in) of clearance between
      and back off the brake pedal position switch                 the threaded end and pad. Tighten the locknut firm-
      until it is no longer touching the brake pedal.              ly. Connect the brake pedal position switch connec-
                                                                   tor.
 2.   Lift up the carpet. At the insulator cutout, measure
      the pedal height from the middle of the right side of        CAUTION: Make sure the brake lights go off when
      the pedal pad.                                               the pedal is released.


       PUSHROD
       LOCKNUT              BRAKE PEDAL POSITION SWITCH




                           BRAKE PEDAL POSITION SWITCH
                           LOCKNUT
                                                 INSULATOR
                                                 (CUTOUT)


                                      BRAKE PEDAL PAD
                                                                                           THREADED LOCKNUT
                                                                                           END


         PEDAL HEIGHT
                                                                                                0.3 mm
                                                                                                (0.01 in)
                                                                                   PAD
                                                              5.   Check the brake pedal free play as described below.

                                       MEASURING POINT        Pedal Free Play

                                                              1.   With the engine off, check the play on the pedal pad
      Standard Pedal Height (with carpet removed):                 by pushing the pedal by hand.
      182 mm (7 3/16 in)
                                                                   Free Play: 0.5 - 2.0 mm (0.02 - 0.08 in)
 3.   Loosen the pushrod locknut, and screw the pushrod
      in or out with pliers until the standard pedal height   2.    If the pedal free play is out of specification, adjust
      from the floor is reached. After adjustment, tighten         the brake pedal position switch.
      the locknut firmly.
                                                                   CAUTION: If the pedal free play is insufficient, it
      NOTE: Do not adjust the pedal height with the                may result in brake drag.
      pushrod pressed.


            Lower the pedal

                                                                                             BRAKE PEDAL POSITION SWITCH



                                                                                                 BRAKE PEDAL PAD


                          Raise
                          the pedal

          PUSHROD LOCKNUT
                                                                                                       PEDAL FREE PLAY
          15 N-m
          (1.5 kgf-m, 11 Ibf-ft)
