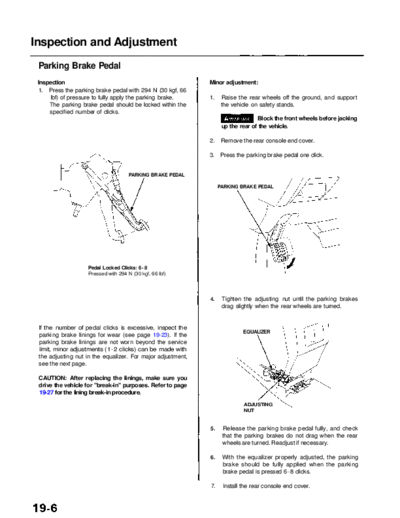

Image preview - the first page of the document

>> Download RL9604S19006A documenatation <<

Text preview - extract from the document

Main Menu Table of Contents

Inspection and Adjustment
Parking Brake Pedal
Inspection Minor adjustment:
1. Press the parking brake pedal with 294 N (30 kgf, 66
Ibf) of pressure to fully apply the parking brake. 1. Raise the rear wheels off the ground, and support
The parking brake pedal should be locked within the the vehicle on safety stands.
specified number of clicks.
Block the front wheels before jacking
up the rear of the vehicle.

2. Remove the rear console end cover.

3. Press the parking brake pedal one click.

PARKING BRAKE PEDAL

Pedal Locked Clicks: 6-8
Pressed with 294 N (30 kgf, 66 Ibf)

4. Tighten the adjusting nut until the parking brakes
drag slightly when the rear wheels are turned.

If the number of pedal clicks is excessive, inspect the
EQUALIZER
parking brake linings for wear (see page 19-23). If the
parking brake linings are not worn beyond the service
limit, minor adjustments (1-2 clicks) can be made with
the adjusting nut in the equalizer. For major adjustment,
see the next page.

CAUTION: After replacing the linings, make sure you
drive the vehicle for "break-in" purposes. Refer to page
19-27 for the lining break-in procedure.

ADJUSTING
NUT

5. Release the parking brake pedal fully, and check
that the parking brakes do not drag when the rear
wheels are turned. Readjust if necessary.

6. With the equalizer properly adjusted, the parking
brake should be fully applied when the parking
brake pedal is pressed 6-8 clicks.

7. Install the rear console end cover.
Main Menu Table of Contents

Major adjustment: 5. Turn the brake shoe adjuster up with a flat blade
screwdriver until the shoes lock, then back off 8
Adjust the parking brake shoe lining-to-drum clearance stops.
with the adjuster in the drum of each rear wheel.

NOTE: Make sure the parking brake linings are not worn
beyond the service limit (see page 19-23).
If either lining is worn beyond the limit, both brake
shoes must be replaced.
FLAT
CAUTION: After replacing the linings, make sure you BLADE
SCREW-
drive the vehicle for "break-in" purposes. Refer to page
DRIVER
19-27 for the lining surface brake-in procedure.

1. Raise the rear wheels off the ground, and support
the vehicle on safety stands.

Block the front wheels before jacking BRAKE SHOE ADJUSTER
up the rear of the vehicle. ACCESS PLUG

2. Remove the rear wheels. 6. Check the number of clicks by pressing the parking
brake pedal with 294 N (30 kgf, 66 Ibf) force.
3. Remove the rear console end cover.
Pedal Locked Clicks: 6-8
4. Release the parking brake pedal, and back off the
adjusting nut in the equalizer. 7. Adjust the parking brake with the adjusting nut in
the equalizer if the pedal clicks are out of specifica-
tion.

8. Install the rear console end cover.

EQUALIZER 9. Install the rear wheels, and lower the vehicle.

ADJUSTING
NUT
