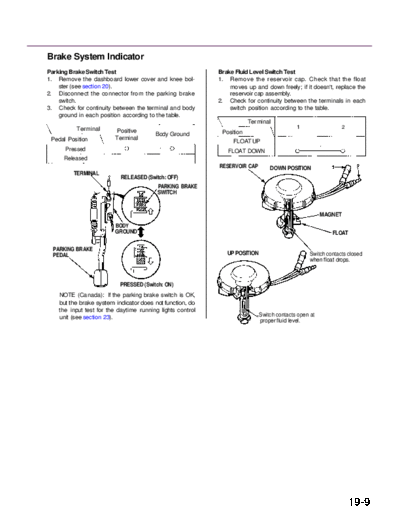

Image preview - the first page of the document



>> Download RL9604S19009A documenatation <<

Text preview - extract from the document

         Main Menu                  Table of Contents




Brake System Indicator
Parking Brake Switch Test                                   Brake Fluid Level Switch Test
1. Remove the dashboard lower cover and knee bol-           1. Remove the reservoir cap. Check that the float
    ster (see section 20).                                      moves up and down freely; if it doesn't, replace the
2. Disconnect the connector from the parking brake              reservoir cap assembly.
    switch.                                                 2. Check for continuity between the terminals in each
3. Check for continuity between the terminal and body           switch position according to the table.
    ground in each position according to the table.
                                                                        Terminal
          Terminal                                                                         1                   2
                         Positive                            Position
                                          Body Ground
 Pedal Position          Terminal
                                                                 FLOAT UP
      Pressed                                                  FLOAT DOWN
      Released
                                                            RESERVOIR CAP        DOWN POSITION
         TERMINAL
                            RELEASED (Switch: OFF)
                                           PARKING BRAKE
                                           SWITCH


                                                                                                      MAGNET
                         BODY
                         GROUND                                                                           FLOAT

  PARKING BRAKE
  PEDAL                                                        UP POSITION                       Switch contacts closed
                                                                                                 when float drops.



                           PRESSED (Switch: ON)
    NOTE (Canada): If the parking brake switch is OK,
    but the brake system indicator does not function, do
    the input test for the daytime running lights control
    unit (see section 23).                                                 sSwitch contacts open at
                                                                             proper fluid level.




                                                                                                                   19-9
