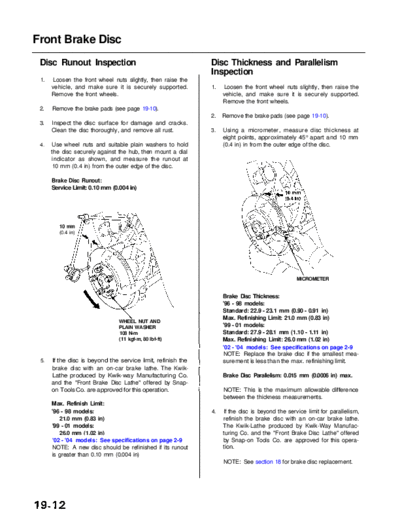

Image preview - the first page of the document
RL9604S19012A


>> Download RL9604S19012A documenatation <<

Text preview - extract from the document
                Main Menu                 Table of Contents


Front Brake Disc
 Disc Runout Inspection                                       Disc Thickness and Parallelism
                                                              Inspection
 1.   Loosen the front wheel nuts slightly, then raise the
      vehicle, and make sure it is securely supported.        1.   Loosen the front wheel nuts slightly, then raise the
      Remove the front wheels.                                     vehicle, and make sure it is securely supported.
                                                                   Remove the front wheels.
 2.   Remove the brake pads (see page 19-10).
                                                              2.   Remove the brake pads (see page 19-10).
 3.   Inspect the disc surface for damage and cracks.
      Clean the disc thoroughly, and remove all rust.         3.   Using a micrometer, measure disc thickness at
                                                                   eight points, approximately 45
