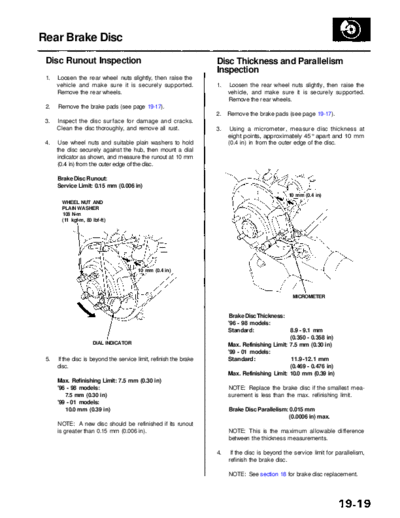

Image preview - the first page of the document
RL9604S19019A


>> Download RL9604S19019A documenatation <<

Text preview - extract from the document
             Main Menu                   Table of Contents


Rear Brake Disc
 Disc Runout Inspection                                             Disc Thickness and Parallelism
                                                                    Inspection
 1.   Loosen the rear wheel nuts slightly, then raise the
      vehicle and make sure it is securely supported.               1.   Loosen the rear wheel nuts slightly, then raise the
      Remove the rear wheels.                                            vehicle, and make sure it is securely supported.
                                                                         Remove the rear wheels.
 2.   Remove the brake pads (see page 19-17).
                                                                    2.   Remove the brake pads (see page 19-17).
 3.   Inspect the disc surface for damage and cracks.
      Clean the disc thoroughly, and remove all rust.               3.    Using a micrometer, measure disc thickness at
                                                                         eight points, approximately 45
