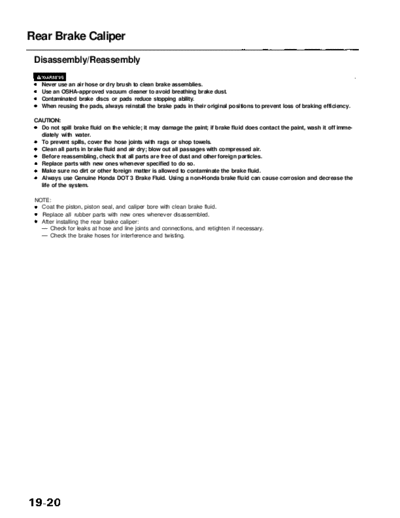

Image preview - the first page of the document



>> Download RL9604S19020A documenatation <<

Text preview - extract from the document

                Main Menu                 Table of Contents


Rear Brake Caliper
 Disassembly/Reassembly

   Never use an air hose or dry brush to clean brake assemblies.
   Use an OSHA-approved vacuum cleaner to avoid breathing brake dust.
   Contaminated brake discs or pads reduce stopping ability.
   When reusing the pads, always reinstall the brake pads in their original positions to prevent loss of braking efficiency.

 CAUTION:
   Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid does contact the paint, wash it off imme-
   diately with water.
   To prevent spills, cover the hose joints with rags or shop towels.
   Clean all parts in brake fluid and air dry; blow out all passages with compressed air.
   Before reassembling, check that all parts are free of dust and other foreign particles.
   Replace parts with new ones whenever specified to do so.
   Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.
   Always use Genuine Honda DOT 3 Brake Fluid. Using a non-Honda brake fluid can cause corrosion and decrease the
   life of the system.

 NOTE:
   Coat the piston, piston seal, and caliper bore with clean brake fluid.
   Replace all rubber parts with new ones whenever disassembled.
   After installing the rear brake caliper:
   -- Check for leaks at hose and line joints and connections, and retighten if necessary.
   -- Check the brake hoses for interference and twisting.
               Main Menu                  Table of Contents




             Brake cylinder grease or equivalent rubber grease.

             Silicone grease (Use recommended grease in the caliper set).




                                                                                     BLEED SCREW
                                                                                     9 N-m (0.9 kgf-m,
                                         BANJO BOLT                                  6.5 Ibf-ft)
                                         34 N-m (3.5 kgf-m,                                              CALIPER BODY
                                         25 Ibf-ft)                                                      Check for scoring on
                                                                                                         cylinder wall.




                         SEALING WASHERS                                                                     PISTON
                         Replace.
                                             CALIPER BOLTS
                                             23 N-m (2.3 kgf-m,
                                             17 Ibf-ft)
                      INNER PAD SHIM B
                      (STAINLESS)                        INNER PAD


                                                                        PAD SPRING        PISTON SEAL                 PISTON BOOT
                                                                                          Replace.                    Replace.
   CALIPER PIN A        PIN BOOTS
                        Replace.
                                     INNER PAD SHIM A

                                                WEAR INDICATOR
                                                Install inner pad with its               OUTER PAD SHIM
  CALIPER PIN B
                                                wear indicator downward.

                                                                             OUTER PAD



                                                              PAD RETAINERS
CALIPER BRACKET
MOUNTING BOLT
38 N-m (3.9 kgf-m,
28 Ibf-ft)                                               CALIPER BRACKET
                                                         Check for cracks.
                   CALIPER BRACKET
                                         PIN BOOT
                                         Replace.




                                         CALIPER PIN
