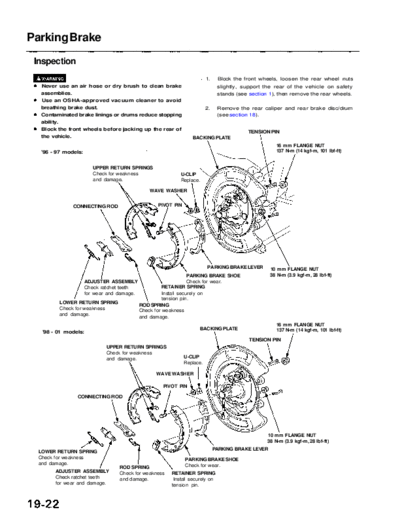

Image preview - the first page of the document
>> Download RL9604S19022A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Parking Brake
Inspection
1. Block the front wheels, loosen the rear wheel nuts
Never use an air hose or dry brush to clean brake slightly, support the rear of the vehicle on safety
assemblies. stands (see section 1), then remove the rear wheels.
Use an OSHA-approved vacuum cleaner to avoid
breathing brake dust. 2. Remove the rear caliper and rear brake disc/drum
Contaminated brake linings or drums reduce stopping (see section 18).
ability.
Block the front wheels before jacking up the rear of TENSION PIN
the vehicle. BACKING PLATE
16 mm FLANGE NUT
'96 - 97 models: 137 N-m (14 kgf-m, 101 Ibf-ft)
UPPER RETURN SPRINGS
Check for weakness U-CLIP
and damage Replace.
WAVE WASHER
CONNECTING ROD PIVOT PIN
PARKING BRAKE LEVER 10 mm FLANGE NUT
PARKING BRAKE SHOE 38 N-m (3.9 kgf-m, 28 Ibf-ft)
ADJUSTER ASSEMBLY Check for wear.
Check ratchet teeth RETAINER SPRING
for wear and damage. Install securely on
tension pin.
LOWER RETURN SPRING
ROD SPRING
Check for weakness
Check for weakness
and damage.
and damage.
16 mm FLANGE NUT
BACKING PLATE 137 N-m (14 kgf-m, 101 Ibf-ft)
'98 - 01 models:
TENSION PIN
UPPER RETURN SPRINGS
Check for weakness
and damage. U-CLIP
Replace.
WAVE WASHER
PIVOT PIN
CONNECTING ROD
10 mm FLANGE NUT
38 N-m (3.9 kgf-m, 28 Ibf-ft)
LOWER RETURN SPRING PARKING BRAKE LEVER
Check for weakness PARKING BRAKE SHOE
and damage. Check for wear.
ROD SPRING
ADJUSTER ASSEMBLY Check for weakness RETAINER SPRING
Check ratchet teeth and damage. Install securely on
for wear and damage. tension pin.
Main Menu Table of Contents
3. Check the brake linings for cracking, glazing, wear, 7. Measure the inside diameter of the disc/drum using
and contamination. inside vernier calipers.
4. Measure the brake lining thickness. Drum Inside Diameter:
Standard: 169.9 - 170.0 mm (6.689 - 6.693 in)
NOTE: Measurement does not include brake shoe Service Limit: 171.0 mm (6.732 in)
thickness.
Brake Lining Thickness: INSIDE VERNIER CALIPERS
Standard: 1.9 - 2.5 mm (0.075 - 0.098 in)
Service Limit: 1.0 mm (0.04 in)
BRAKE DISC/DRUM
8. If the inside diameter of the brake disc/drum is more
than the service limit, replace the brake disc/drum.
LININGS
9. Check the brake disc/drum for scoring, grooves, and
cracks.
5. If the brake lining thickness is less than the service
limit, replace the brake shoes as a set.
6. Check the bearings in the hub unit for smooth oper-
ation. If the bearings require servicing, refer to
section 18.
