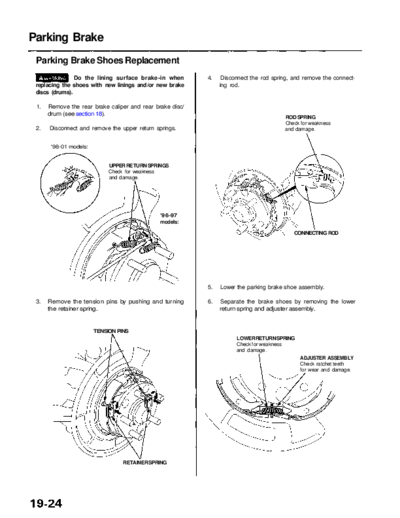

Image preview - the first page of the document
>> Download RL9604S19024A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Parking Brake
Parking Brake Shoes Replacement
Do the lining surface brake-in when 4. Disconnect the rod spring, and remove the connect-
replacing the shoes with new linings and/or new brake ing rod.
discs (drums).
1. Remove the rear brake caliper and rear brake disc/
drum (see section 18).
ROD SPRING
Check for weakness
2. Disconnect and remove the upper return springs. and damage.
'98-01 models:
UPPER RETURN SPRINGS
Check for weakness
and damage.
'96-97
models:
CONNECTING ROD
5. Lower the parking brake shoe assembly.
3. Remove the tension pins by pushing and turning 6. Separate the brake shoes by removing the lower
the retainer spring. return spring and adjuster assembly.
TENSION PINS
LOWER RETURN SPRING
Check for weakness
and damage.
ADJUSTER ASSEMBLY
Check ratchet teeth
for wear and damage.
RETAINER SPRING
Main Menu Table of Contents
7. Remove the brake shoe by disconnecting the park- 9. Apply Molykote 44 MA grease to the sliding surface
ing brake cable from the parking brake lever. of the pivot pin, and insert the pin into the parking
brake shoe.
10. Install the parking brake lever and wave washer on
the pivot pin, and secure them with a new U-clip.
PARKING BRAKE LEVER
NOTE: Pinch the new U-clip securely to prevent the
pivot pin from coming out of the parking brake shoe.
: Apply Molykote 44 MA grease
to sliding surface.
PARKING BRAKE SHOE
PARKING BRAKE CABLE
PIVOT PIN
PARKING BRAKE LEVER
8. Remove the wave washer, parking brake lever, and WAVE WASHER
pivot pin from the parking brake shoe by removing U-CLIP
the U-clip. Replace.
PARKING BRAKE SHOE PIVOT PIN 11. Connect the parking brake cable to the parking brake
lever.
PARKING BRAKE LEVER
PARKING BRAKE LEVER
U-CLIP WAVE WASHER PARKING BRAKE CABLE
Replace.
Main Menu Table of Contents
Parking Brake
Parking Brake Shoes Replacement (cont'd)
12. Apply Molykote 44 MA grease on each sliding sur- 15. Connect the rod spring to the connecting rod and
face. parking brake shoe as shown.
CAUTION: Contaminated brake linings or drums NOTE: Hook the rod spring to the connecting rod
reduce stopping ability. Keep grease or oil off the with the spring end pointing downward.
brake linings. Wipe any excess grease off the parts.
PIVOT PIN
BACKING PLATE
ROD SPRING
SPRING END
CONNECTING ROD
Greasing symbols:
Brake shoe ends
Opposite the edge of the shoe
Sliding surface
13. Clean the threaded portions of clevises A and B. 16. Install the tension pins and retainer springs.
Coat the threads of the clevises with Molykote 44 MA
grease. To shorten the clevises, turn the adjuster bolt.
LOWER RETURN SPRING TENSION PINS
ADJUSTER ASSEMBLY
CLEVIS A
CLEVIS B
Apply Molykote 44 MA grease
to sliding surface. RETAINER SPRING
Install securely on
tension pin.
14. Install the adjuster assembly, and the lower return
spring on the parking brake shoes.
Main Menu Table of Contents
17. Install the upper return springs.
18. Install the brake disc/drum and rear brake caliper
(see section 18).
19. Adjust the parking brake (see page 19-6).
