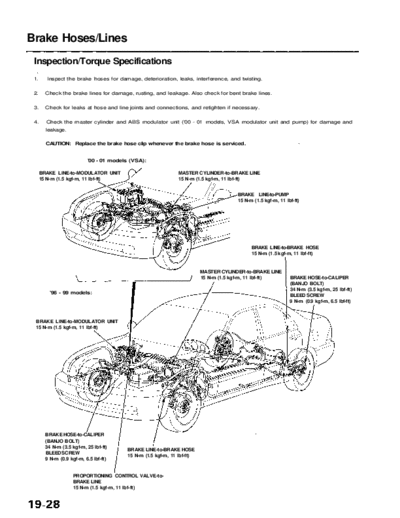

Image preview - the first page of the document



>> Download RL9604S19028A documenatation <<

Text preview - extract from the document

                    Main Menu                Table of Contents


Brake Hoses/Lines
 Inspection/Torque Specifications
 1.     Inspect the brake hoses for damage, deterioration, leaks, interference, and twisting.

 2.     Check the brake lines for damage, rusting, and leakage. Also check for bent brake lines.

 3.     Check for leaks at hose and line joints and connections, and retighten if necessary.

 4.     Check the master cylinder and ABS modulator unit ('00 - 01 models, VSA modulator unit and pump) for damage and
        leakage.

        CAUTION: Replace the brake hose clip whenever the brake hose is serviced.


                           '00 - 01 models (VSA):

      BRAKE LINE-to-MODULATOR UNIT                            MASTER CYLINDER-to-BRAKE LINE
      15 N-m (1.5 kgf-m, 11 Ibf-ft)                           15 N-m (1.5 kgf-m, 11 Ibf-ft)


                                                                                      BRAKE LINE-to-PUMP
                                                                                      15 N-m (1.5 kgf-m, 11 Ibf-ft)




                                                                                            BRAKE LINE-to-BRAKE HOSE
                                                                                            15 N-m (1.5 kgf-m, 11 Ibf-ft)


                                                                         MASTER CYLINDER-to-BRAKE LINE
                                                                         15 N-m (1.5 kgf-m, 11 Ibf-ft)        BRAKE HOSE-to-CALIPER
                                                                                                              (BANJO BOLT)
                                                                                                              34 N-m (3.5 kgf-m, 25 Ibf-ft)
          '96 - 99 models:
                                                                                                              BLEED SCREW
                                                                                                              9 N-m (0.9 kgf-m, 6.5 Ibf-ft)



  BRAKE LINE-to-MODULATOR UNIT
  15 N-m (1.5 kgf-m, 11 Ibf-ft)




        BRAKE HOSE-to-CALIPER
        (BANJO BOLT)
        34 N-m (3.5 kgf-m, 25 Ibf-ft)
                                         BRAKE LINE-to-BRAKE HOSE
        BLEED SCREW
                                         15 N-m (1.5 kgf-m, 11 Ibf-ft)
        9 N-m (0.9 kgf-m, 6.5 Ibf-ft)


                    PROPORTIONING CONTROL VALVE-to-
                    BRAKE LINE
                    15 N-m (1.5 kgf-m, 11 Ibf-ft)
