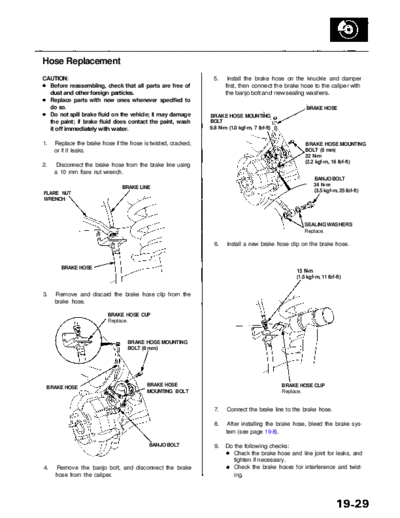

Image preview - the first page of the document



>> Download RL9604S19029A documenatation <<

Text preview - extract from the document

            Main Menu                  Table of Contents




Hose Replacement
CAUTION:                                                        5.     Install the brake hose on the knuckle and damper
  Before reassembling, check that all parts are free of               first, then connect the brake hose to the caliper with
  dust and other foreign particles.                                   the banjo bolt and new sealing washers.
  Replace parts with new ones whenever specified to
  do so.                                                                                                BRAKE HOSE
  Do not spill brake fluid on the vehicle; it may damage       BRAKE HOSE MOUNTING
  the paint; if brake fluid does contact the paint, wash       BOLT
  it off immediately with water.                               9.8 N-m (1.0 kgf-m, 7 Ibf-ft)


1.   Replace the brake hose if the hose is twisted, cracked,                                            BRAKE HOSE MOUNTING
     or if it leaks.                                                                                    BOLT (8 mm)
                                                                                                        22 N-m
                                                                                                        (2.2 kgf-m, 16 Ibf-ft)
2.    Disconnect the brake hose from the brake line using
     a 10 mm flare nut wrench.
                                                                                                             BANJO BOLT
                                                                                                             34 N-m
                                BRAKE LINE
                                                                                                             (3.5 kgf-m, 25 Ibf-ft)
FLARE NUT
WRENCH



                                                                                                       SEALING WASHERS
                                                                                                       Replace.

                                                                6.     Install a new brake hose clip on the brake hose.



       BRAKE HOSE
                                                                                                    15 N-m
                                                                                                    (1.5 kgf-m, 11 Ibf-ft)


3.   Remove and discard the brake hose clip from the
     brake hose.

                          BRAKE HOSE CUP
                          Replace.



                                  BRAKE HOSE MOUNTING
                                  BOLT (8 mm)




 BRAKE HOSE                               BRAKE HOSE                                           BRAKE HOSE CLIP
                                          MOUNTING BOLT                                        Replace.


                                                                 7.    Connect the brake line to the brake hose.

                                                                 8.    After installing the brake hose, bleed the brake sys-
                                                                      tem (see page 19-8).

                                           BANJO BOLT            9.   Do the following checks:
                                                                        Check the brake hose and line joint for leaks, and
                                                                        tighten if necessary.
4.   Remove the banjo bolt, and disconnect the brake                     Check the brake hoses for interference and twist-
     hose from the caliper.                                              ing.
