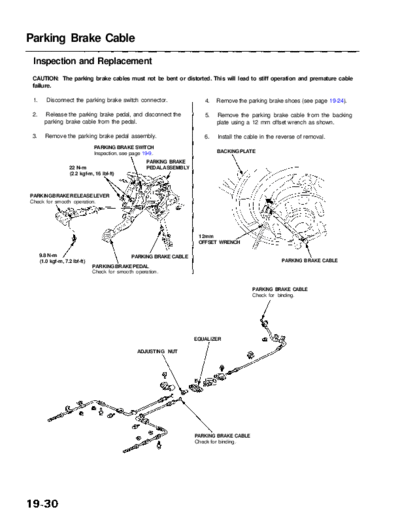

Image preview - the first page of the document



>> Download RL9604S19030A documenatation <<

Text preview - extract from the document

                      Main Menu                    Table of Contents


Parking Brake Cable
 Inspection and Replacement
 CAUTION: The parking brake cables must not be bent or distorted. This will lead to stiff operation and premature cable
 failure.

 1.      Disconnect the parking brake switch connector.                   4.   Remove the parking brake shoes (see page 19-24).

 2.     Release the parking brake pedal, and disconnect the               5.   Remove the parking brake cable from the backing
        parking brake cable from the pedal.                                    plate using a 12 mm offset wrench as shown.

 3.     Remove the parking brake pedal assembly.                          6.   Install the cable in the reverse of removal.
                                PARKING BRAKE SWITCH
                                Inspection, see page 19-9.                     BACKING PLATE

                                                      PARKING BRAKE
                     22 N-m                           PEDAL ASSEMBLY
                     (2.2 kgf-m, 16 Ibf-ft)



PARKING BRAKE RELEASE LEVER
Check for smooth operation.




                                                                        12mm
                                                                        OFFSET WRENCH

      9.8 N-m                                   PARKING BRAKE CABLE
      (1.0 kgf-m, 7.2 Ibf-ft)                                                                            PARKING BRAKE CABLE
                                PARKING BRAKE PEDAL
                                Check for smooth operation.


                                                                                             PARKING BRAKE CABLE
                                                                                             Check for binding.




                                                                       EQUALIZER

                                                  ADJUSTING NUT




                                                                       PARKING BRAKE CABLE
                                                                       Check for binding.
