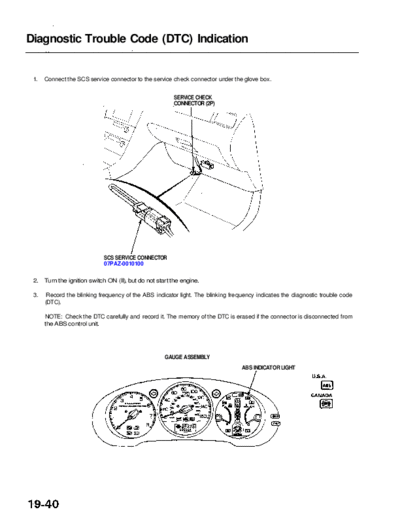

Image preview - the first page of the document



>> Download RL9604S19040A documenatation <<

Text preview - extract from the document

                Main Menu                 Table of Contents



Diagnostic Trouble Code (DTC) Indication


 1.   Connect the SCS service connector to the service check connector under the glove box.


                                                         SERVICE CHECK
                                                         CONNECTOR (2P)




                             SCS SERVICE CONNECTOR
                             07PAZ-0010100

 2.   Turn the ignition switch ON (II), but do not start the engine.

 3.   Record the blinking frequency of the ABS indicator light. The blinking frequency indicates the diagnostic trouble code
      (DTC).

      NOTE: Check the DTC carefully and record it. The memory of the DTC is erased if the connector is disconnected from
      the ABS control unit.




                                                      GAUGE ASSEMBLY
                                                                                 ABS INDICATOR LIGHT
            Main Menu                Table of Contents




     DTC Indication Pattern (When the ABS control unit detected a problem three times.):




       Turn the ignition switch ON (II). The ABS indicator light comes on for 2 seconds to check the bulb.
       The ABS control unit indicates the DTC 3 times.
       If you miscount the blinking frequency or if you recheck the blinking frequency, turn the ignition switch OFF then
       turn it ON (II) to cycle the ABS indicator light again.

4.   Remove the SCS service connector.

     NOTE: The Malfunction Indicator Lamp (MIL) will stay on after the engine is started if the SCS service connector is
     connected.

5.   Remove the ABS B2 (15 A) fuse in the under-hood fuse/relay box for at least 3 seconds to erase the ABS control unit's
     memory.
