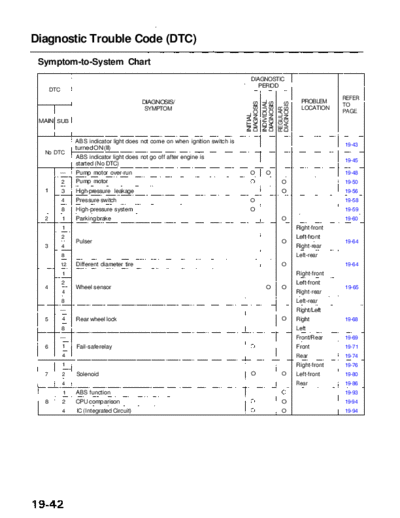

Image preview - the first page of the document
>> Download RL9604S19042A documenatation <<Text preview - extract from the document Main Menu Table of Contents
Diagnostic Trouble Code (DTC)
Symptom-to-System Chart
DIAGNOSTIC
PERIOD
DTC
REFER
DIAGNOSIS/ PROBLEM
INDIVIDUAL
DIAGNOSIS
DIAGNOSIS
DIAGNOSIS
TO
LOCATION
REGULAR
SYMPTOM
PAGE
INITIAL
MAIN SUB
ABS indicator light does not come on when ignition switch is
19-43
turned ON (II)
No DTC
ABS indicator light does not go off after engine is
19-45
started (No DTC)
-- Pump motor over-run O O 19-48
2 Pump motor O 19-50
1 3 High-pressure leakage O 19-56
4 Pressure switch O 19-58
8 High-pressure system O 19-59
2 1 Parking brake O 19-60
1 Right-front
2 Left-front
Pulser O 19-64
3 4 Right-rear
8 Left-rear
12 Different diameter tire O 19-64
1 Right-front
2 Left-front
4 Wheel sensor O O 19-65
4 Right-rear
8 Left-rear
-- Right/Left
5 4 Rear wheel lock O Right 19-68
8 Left
-- Front/Rear 19-69
6 1 Fail-safe relay Front 19-71
4 Rear 19-74
1 Right-front 19-76
7 2 Solenoid O O Left-front 19-80
4 Rear 19-86
1 ABS function 19-93
8 2 CPU comparison O 19-94
4 IC (Integrated Circuit) O 19-94
