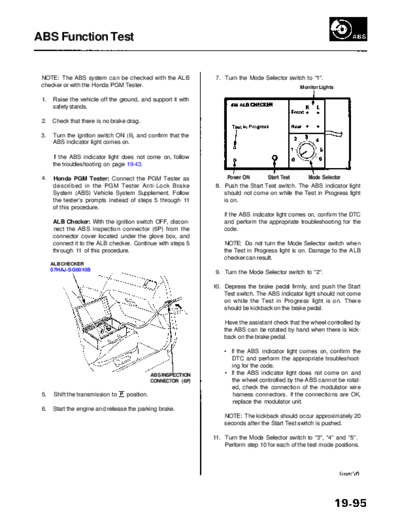

Image preview - the first page of the document



>> Download RL9604S19095A documenatation <<

Text preview - extract from the document

               Main Menu                   Table of Contents


ABS Function Test


 NOTE: The ABS system can be checked with the ALB               7. Turn the Mode Selector switch to "1".
 checker or with the Honda PGM Tester.                                                            Monitor Lights

 1.   Raise the vehicle off the ground, and support it with
      safety stands.

 2.   Check that there is no brake drag.

 3.   Turn the ignition switch ON (II), and confirm that the
      ABS indicator light comes on.

      If the ABS indicator light does not come on, follow
      the troubleshooting on page 19-43.

 4.   Honda PGM Tester: Connect the PGM Tester as                    Power ON        Start Test      Mode Selector
      described in the PGM Tester Anti-Lock Brake               8. Push the Start Test switch. The ABS indicator light
      System (ABS) Vehicle System Supplement. Follow               should not come on while the Test in Progress light
      the tester's prompts instead of steps 5 through 11           is on.
      of this procedure.
                                                                    If the ABS indicator light comes on, confirm the DTC
      ALB Checker: With the ignition switch OFF, discon-            and perform the appropriate troubleshooting for the
      nect the ABS inspection connector (6P) from the               code.
      connector cover located under the glove box, and
      connect it to the ALB checker. Continue with steps 5          NOTE: Do not turn the Mode Selector switch when
      through 11 of this procedure.                                 the Test in Progress light is on. Damage to the ALB
                                                                    checker can result.
      ALB CHECKER
      07HAJ-SG0010B                                             9. Turn the Mode Selector switch to "2".

                                                                10. Depress the brake pedal firmly, and push the Start
                                                                    Test switch. The ABS indicator light should not come
                                                                    on while the Test in Progress light is on. There
                                                                    should be kickback on the brake pedal.

                                                                    Have the assistant check that the wheel controlled by
                                                                    the ABS can be rotated by hand when there is kick-
                                                                    back on the brake pedal.
