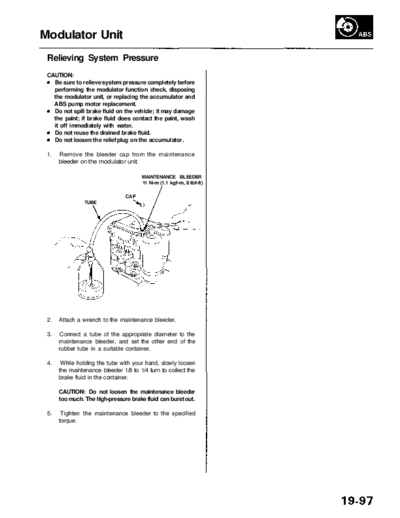

>> Download RL9604S19097A documenatation <<Text preview - extract from the document Main Menu Table of Contents
Modulator Unit
Relieving System Pressure
CAUTION:
Be sure to relieve system pressure completely before
performing the modulator function check, disposing
the modulator unit, or replacing the accumulator and
ABS pump motor replacement.
Do not spill brake fluid on the vehicle; it may damage
the paint; if brake fluid does contact the paint, wash
it off immediately with water.
Do not reuse the drained brake fluid.
Do not loosen the relief plug on the accumulator.
1. Remove the bleeder cap from the maintenance
bleeder on the modulator unit.
MAINTENANCE BLEEDER
11 N-m (1.1 kgf-m, 8 Ibf-ft)
CAP
TUBE
2. Attach a wrench to the maintenance bleeder.
3. Connect a tube of the appropriate diameter to the
maintenance bleeder, and set the other end of the
rubber tube in a suitable container.
4. While holding the tube with your hand, slowly loosen
the maintenance bleeder 1/8 to 1/4 turn to collect the
brake fluid in the container.
CAUTION: Do not loosen the maintenance bleeder
too much. The high-pressure brake fluid can burst out.
5. Tighten the maintenance bleeder to the specified
torque.
