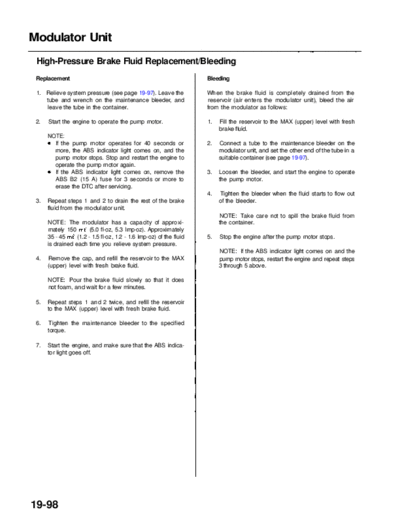

Image preview - the first page of the document



>> Download RL9604S19098A documenatation <<

Text preview - extract from the document

                Main Menu                    Table of Contents


Modulator Unit
 High-Pressure Brake Fluid Replacement/Bleeding
 Replacement                                                         Bleeding

 1. Relieve system pressure (see page 19-97). Leave the              When the brake fluid is completely drained from the
    tube and wrench on the maintenance bleeder, and                  reservoir (air enters the modulator unit), bleed the air
    leave the tube in the container.                                 from the modulator as follows:

 2.   Start the engine to operate the pump motor.                    1.   Fill the reservoir to the MAX (upper) level with fresh
                                                                          brake fluid.
      NOTE:
        If the pump motor operates for 40 seconds or                 2.   Connect a tube to the maintenance bleeder on the
        more, the ABS indicator light comes on, and the                   modulator unit, and set the other end of the tube in a
        pump motor stops. Stop and restart the engine to                  suitable container (see page 19-97).
        operate the pump motor again.
        If the ABS indicator light comes on, remove the              3.   Loosen the bleeder, and start the engine to operate
        ABS B2 (15 A) fuse for 3 seconds or more to                       the pump motor.
        erase the DTC after servicing.
                                                                     4.   Tighten the bleeder when the fluid starts to flow out
 3.   Repeat steps 1 and 2 to drain the rest of the brake                 of the bleeder.
      fluid from the modulator unit.
                                                                          NOTE: Take care not to spill the brake fluid from
      NOTE: The modulator has a capacity of approxi-                      the container.
      mately 150        (5.0 fl-oz, 5.3 Imp-oz). Approximately
      35 - 45     (1.2 - 1.5 fl-oz, 1.2 - 1.6 Imp-oz) of the fluid   5.   Stop the engine after the pump motor stops.
      is drained each time you relieve system pressure.
                                                                          NOTE: If the ABS indicator light comes on and the
 4.   Remove the cap, and refill the reservoir to the MAX                 pump motor stops, restart the engine and repeat steps
      (upper) level with fresh brake fluid.                               3 through 5 above.

      NOTE: Pour the brake fluid slowly so that it does
      not foam, and wait for a few minutes.

 5.   Repeat steps 1 and 2 twice, and refill the reservoir
      to the MAX (upper) level with fresh brake fluid.

 6.   Tighten the maintenance bleeder to the specified
      torque.

 7.   Start the engine, and make sure that the ABS indica-
      tor light goes off.




19-98
