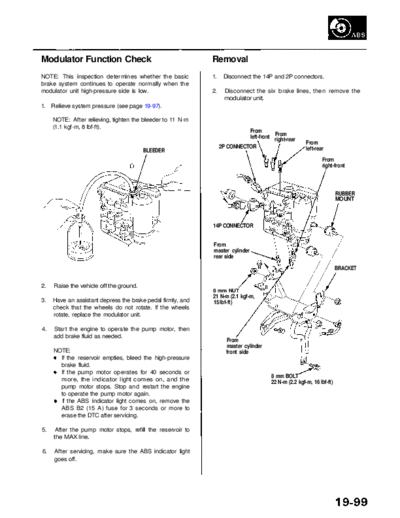

Image preview - the first page of the document



>> Download RL9604S19099A documenatation <<

Text preview - extract from the document

             Main Menu                   Table of Contents




Modulator Function Check                                     Removal
NOTE: This inspection determines whether the basic           1.    Disconnect the 14P and 2P connectors.
brake system continues to operate normally when the
modulator unit high-pressure side is low.                    2.     Disconnect the six brake lines, then remove the
                                                                    modulator unit.
1. Relieve system pressure (see page 19-97).

     NOTE: After relieving, tighten the bleeder to 11 N-m
     (1.1 kgf-m, 8 Ibf-ft).
                                                                            From
                                                                            left-front From
                                                                                       right-rear
                                                                                                       From
                                                                  2P CONNECTOR                         left-rear
                                         BLEEDER
                                                                                                               From
                                                                                                               right-front



                                                                                                                       RUBBER
                                                                                                                       MOUNT



                                                             14P CONNECTOR


                                                             From
                                                             master cylinder
                                                             rear side

                                                                                                                       BRACKET


2.   Raise the vehicle off the ground.
                                                             8 mm NUT
                                                             21 N-m (2.1 kgf-m
3.   Have an assistant depress the brake pedal firmly, and   15 Ibf-ft)
     check that the wheels do not rotate. If the wheels
     rotate, replace the modulator unit.

4.   Start the engine to operate the pump motor, then
     add brake fluid as needed.
                                                                    From
                                                                    master cylinder
     NOTE:                                                          front side
       If the reservoir empties, bleed the high-pressure
       brake fluid.
       If the pump motor operates for 40 seconds or
                                                                                       8 mm BOLT
       more, the indicator light comes on, and the                                     22 N-m (2.2 kgf-m, 16 Ibf-ft)
       pump motor stops. Stop and restart the engine
       to operate the pump motor again.
       If the ABS indicator light comes on, remove the
       ABS B2 (15 A) fuse for 3 seconds or more to
       erase the DTC after servicing.

5.    After the pump motor stops, refill the reservoir to
     the MAX line.

6.   After servicing, make sure the ABS indicator light
     goes off.
