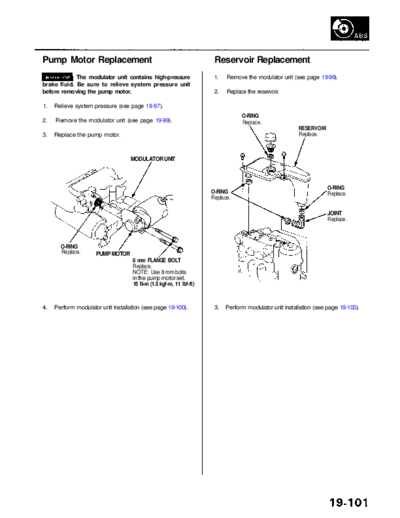

Image preview - the first page of the document



>> Download RL9604S19101A documenatation <<

Text preview - extract from the document

            Main Menu                 Table of Contents




Pump Motor Replacement                                               Reservoir Replacement
             The modulator unit contains high-pressure               1.   Remove the modulator unit (see page 19-99).
brake fluid. Be sure to relieve system pressure unit
before removing the pump motor.                                      2.   Replace the reservoir.

1.   Relieve system pressure (see page 19-97).
                                                                                O-RING
2.   Remove the modulator unit (see page 19-99).                                Replace.
                                                                                                       RESERVOIR
3.   Replace the pump motor.                                                                           Replace.



                                   MODULATOR UNIT



                                                                                                                   O-RING
                                                                    O-RING                                         Replace.
                                                                    Replace

                                                                                                                   JOINT
                                                                                                                   Replace.



       O-RING
       Replace.       PUMP MOTOR
                                    8 mm FLANGE BOLT
                                    Replace.
                                    NOTE: Use 8 mm bolts
                                    in the pump motor set.
                                    15 N-m (1.5 kgf-m, 11 Ibf-ft)



4.   Perform modulator unit installation (see page 19-100).          3.   Perform modulator unit installation (see page 19-100).
