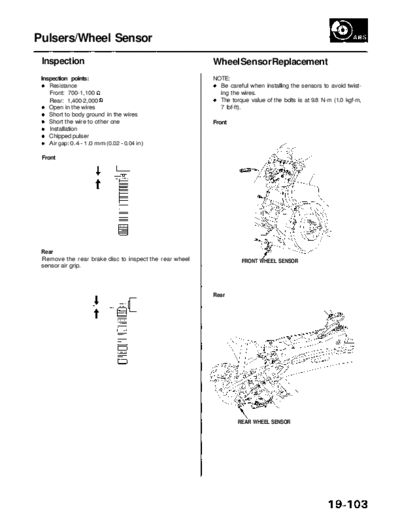

             Main Menu                  Table of Contents



Pulsers/Wheel Sensor
 Inspection                                                 Wheel Sensor Replacement
 Inspection points:                                         NOTE:
    Resistance                                                Be careful when installing the sensors to avoid twist-
    Front: 700-1,100                                          ing the wires.
    Rear: 1,400-2,000                                         The torque value of the bolts is at 9.8 N-m (1.0 kgf-m,
    Open in the wires                                         7 Ibf-ft).
    Short to body ground in the wires
    Short the wire to other one                             Front
    Installation
    Chipped pulser
    Air gap: 0.4 - 1.0 mm (0.02 - 0.04 in)

 Front




 Rear
 Remove the rear brake disc to inspect the rear wheel                  FRONT WHEEL SENSOR
 sensor air grip.




                                                            Rear




                                                                     REAR WHEEL SENSOR
