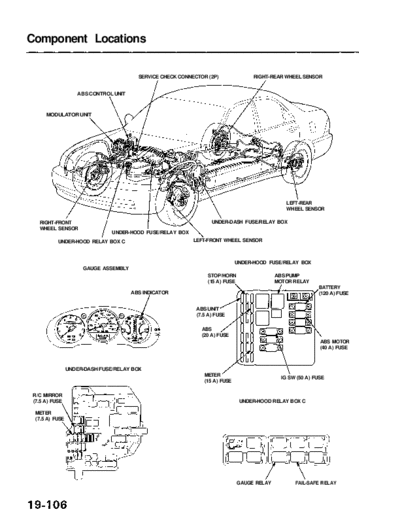

Image preview - the first page of the document
>> Download RL9604S19106A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Component Locations
SERVICE CHECK CONNECTOR (2P) RIGHT-REAR WHEEL SENSOR
ABS CONTROL UNIT
MODULATOR UNIT
LEFT-REAR
WHEEL SENSOR
RIGHT-FRONT UNDER-DASH FUSE/RELAY BOX
WHEEL SENSOR
UNDER-HOOD FUSE/RELAY BOX
UNDER-HOOD RELAY BOX C LEFT-FRONT WHEEL SENSOR
UNDER-HOOD FUSE/RELAY BOX
GAUGE ASSEMBLY
STOP/HORN ABS PUMP
(15 A) FUSE MOTOR RELAY
BATTERY
ABS INDICATOR (120 A) FUSE
ABS UNIT
(7.5 A) FUSE
ABS
(20 A) FUSE
ABS MOTOR
(40 A) FUSE
UNDER-DASH FUSE/RELAY BOX
METER IG SW (50 A) FUSE
(15 A) FUSE
R/C MIRROR
(7.5 A) FUSE UNDER-HOOD RELAY BOX C
METER
(7.5 A) FUSE
GAUGE RELAY FAIL-SAFE RELAY
