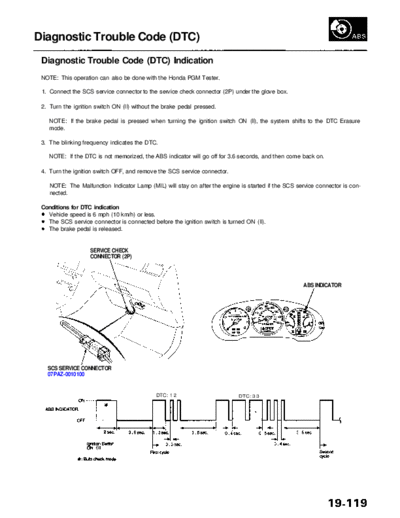

Image preview - the first page of the document
RL9604S19119A


>> Download RL9604S19119A documenatation <<

Text preview - extract from the document
              Main Menu                 Table of Contents


Diagnostic Trouble Code (DTC)
 Diagnostic Trouble Code (DTC) Indication
 NOTE: This operation can also be done with the Honda PGM Tester.

 1. Connect the SCS service connector to the service check connector (2P) under the glove box.

 2. Turn the ignition switch ON (II) without the brake pedal pressed.

    NOTE: If the brake pedal is pressed when turning the ignition switch ON (II), the system shifts to the DTC Erasure
    mode.

 3. The blinking frequency indicates the DTC.

    NOTE: If the DTC is not memorized, the ABS indicator will go off for 3.6 seconds, and then come back on.

 4. Turn the ignition switch OFF, and remove the SCS service connector.

    NOTE: The Malfunction Indicator Lamp (MIL) will stay on after the engine is started if the SCS service connector is con-
    nected.

 Conditions for DTC indication
   Vehicle speed is 6 mph (10 km/h) or less.
   The SCS service connector is connected before the ignition switch is turned ON (II).
   The brake pedal is released.


                    SERVICE CHECK
                    CONNECTOR (2P)



                                                                                                     ABS INDICATOR




   SCS SERVICE CONNECTOR
   07PAZ-0010100


                                             DTC: 1 2                       DTC : 3 3
