Service Manuals, User Guides, Schematic Diagrams or docs for : . Car Manuals Acura 3.5RL 1996-2004 Approved srm RL9604S19121A
<< Back | HomeMost service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

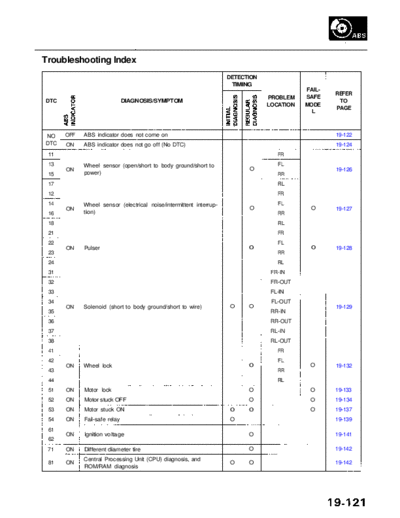

Image preview - the first page of the document
>> Download RL9604S19121A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Troubleshooting Index
DETECTION
TIMING
FAIL-
REFER
PROBLEM SAFE
DTC DIAGNOSIS/SYMPTOM TO
LOCATION MODE
PAGE
L
NO OFF ABS indicator does not come on 19-122
DTC ON ABS indicator does not go off (No DTC) 19-124
11 FR
13 Wheel sensor (open/short to body ground/short to FL
ON O 19-126
15 power) RR
17 RL
12 FR
14 Wheel sensor (electrical noise/intermittent interrup- FL
ON O O 19-127
16 tion) RR
18 RL
21 FR
22 FL
ON Pulser 0 0 19-128
23 RR
24 RL
31 FR-IN
32 FR-OUT
33 FL-IN
34 FL-OUT
ON Solenoid (short to body ground/short to wire) O O 19-129
35 RR-IN
36 RR-OUT
37 RL-IN
38 RL-OUT
41 FR
42 FL
ON Wheel lock 0 O 19-132
43 RR
44 RL
51 ON Motor lock O O 19-133
52 ON Motor stuck OFF O O 19-134
53 ON Motor stuck ON 0 0 O 19-137
54 ON Fail-safe relay O 19-139
61
ON Ignition voltage O 19-141
62
71 ON Different diameter tire O 19-142
Central Processing Unit (CPU) diagnosis, and
81 ON O O 19-142
ROM/RAM diagnosis
