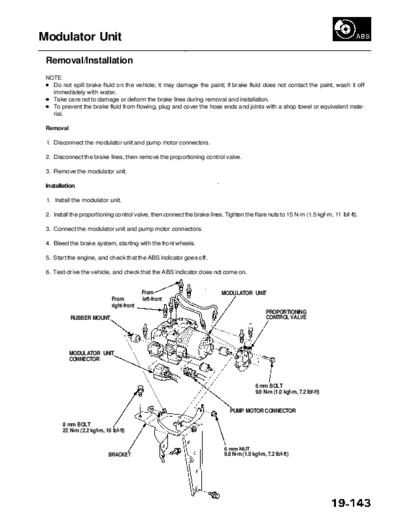

Image preview - the first page of the document



>> Download RL9604S19143A documenatation <<

Text preview - extract from the document

                Main Menu                   Table of Contents


Modulator Unit
 Removal/Installation
 NOTE:
   Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid does not contact the paint, wash it off
   immediately with water.
   Take care not to damage or deform the brake lines during removal and installation.
   To prevent the brake fluid from flowing, plug and cover the hose ends and joints with a shop towel or equivalent mate-
   rial.

 Removal

 1. Disconnect the modulator unit and pump motor connectors.

 2. Disconnect the brake lines, then remove the proportioning control valve.

 3. Remove the modulator unit.

 Installation

 1. Install the modulator unit.

 2. Install the proportioning control valve, then connect the brake lines. Tighten the flare nuts to 15 N-m (1.5 kgf-m, 11 Ibf-ft).

 3. Connect the modulator unit and pump motor connectors.

 4. Bleed the brake system, starting with the front wheels.

 5. Start the engine, and check that the ABS indicator goes off.

 6. Test-drive the vehicle, and check that the ABS indicator does not come on.


                                            From                          MODULATOR UNIT
                              From          left-front
                              right-front
                                                                                               PROPORTIONING
           RUBBER MOUNT                                                                        CONTROL VALVE




           MODULATOR UNIT
           CONNECTOR



                                                                                         6 mm BOLT
                                                                                         9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)


                                                                             PUMP MOTOR CONNECTOR

        8 mm BOLT
        22 N-m (2.2 kgf-m, 16 Ibf-ft)


                                                                           6 mm NUT
                             BRACKET                                       9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
