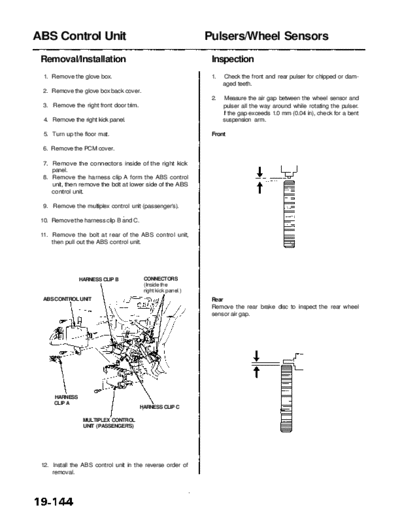

Image preview - the first page of the document



>> Download RL9604S19144A documenatation <<

Text preview - extract from the document

             Main Menu                  Table of Contents


ABS Control Unit                                              Pulsers/Wheel Sensors
 Removal/Installation                                          Inspection
  1. Remove the glove box.                                     1.   Check the front and rear pulser for chipped or dam-
                                                                    aged teeth.
 2. Remove the glove box back cover.
                                                               2.    Measure the air gap between the wheel sensor and
 3. Remove the right front door trim.                               pulser all the way around while rotating the pulser.
                                                                    If the gap exceeds 1.0 mm (0.04 in), check for a bent
  4. Remove the right kick panel.                                   suspension arm.

  5. Turn up the floor mat.                                    Front

 6. Remove the PCM cover.

 7. Remove the connectors inside of the right kick
    panel.
 8. Remove the harness clip A form the ABS control
    unit, then remove the bolt at lower side of the ABS
    control unit.

 9. Remove the multiplex control unit (passenger's).

 10. Remove the harness clip B and C.

 11. Remove the bolt at rear of the ABS control unit,
     then pull out the ABS control unit.




                HARNESS CLIP B           CONNECTORS
                                         (Inside the
                                         right kick panel.)
 ABS CONTROL UNIT                                              Rear
                                                               Remove the rear brake disc to inspect the rear wheel
                                                               sensor air gap.




      HARNESS
      CLIP A
                                        HARNESS CLIP C

                 MULTIPLEX CONTROL
                 UNIT (PASSENGER'S)




 12. Install the ABS control unit in the reverse order of
     removal.
