Service Manuals, User Guides, Schematic Diagrams or docs for : . Car Manuals Acura 3.5RL 1996-2004 Approved srm RL9604S19149A
<< Back | HomeMost service manuals and schematics are PDF files, so You will need Adobre Acrobat Reader to view : Acrobat Download Some of the files are DjVu format. Readers and resources available here : DjVu Resources
For the compressed files, most common are zip and rar. Please, extract files with Your favorite compression software ( WinZip, WinRAR ... ) before viewing. If a document has multiple parts, You should download all, before extracting.
Good luck. Repair on Your own risk. Make sure You know what You are doing.

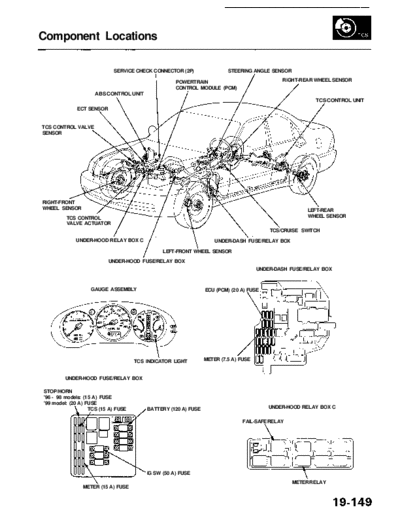

Image preview - the first page of the document
>> Download RL9604S19149A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Component Locations
SERVICE CHECK CONNECTOR (2P) STEERING ANGLE SENSOR
POWERTRAIN RIGHT-REAR WHEEL SENSOR
CONTROL MODULE (PCM)
ABS CONTROL UNIT
TCS CONTROL UNIT
ECT SENSOR
TCS CONTROL VALVE
SENSOR
RIGHT-FRONT
WHEEL SENSOR LEFT-REAR
TCS CONTROL WHEEL SENSOR
VALVE ACTUATOR
TCS/CRUISE SWITCH
UNDER-HOOD RELAY BOX C UNDER-DASH FUSE/RELAY BOX
LEFT-FRONT WHEEL SENSOR
UNDER-HOOD FUSE/RELAY BOX
UNDER-DASH FUSE/RELAY BOX
GAUGE ASSEMBLY ECU (PCM) (20 A) FUSE
TCS INDICATOR LIGHT METER (7.5 A) FUSE
UNDER-HOOD FUSE/RELAY BOX
STOP/HORN
'96 - 98 models: (15 A) FUSE
'99 model: (20 A) FUSE
TCS (15 A) FUSE BATTERY (120 A) FUSE UNDER-HOOD RELAY BOX C
FAIL-SAFE RELAY
IG SW (50 A) FUSE
METER RELAY
METER (15 A) FUSE
