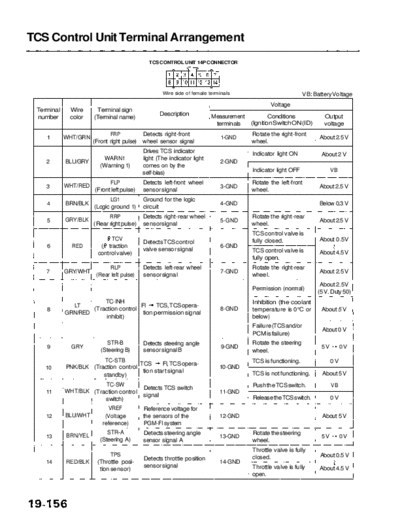

Image preview - the first page of the document
>> Download RL9604S19156A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
TCS Control Unit Terminal Arrangement
TCS CONTROL UNIT 14P CONNECTOR
Wire side of female terminals VB: Battery Voltage
Voltage
Terminal Wire Terminal sign
Description Measurement Conditions Output
number color (Terminal name)
terminals (Ignition Switch ON (ID) voltage
FRP Detects right-front Rotate the right-front
1 WHT/GRN 1-GND About 2.5 V
(Front right pulse) wheel sensor signal wheel.
Drives TCS indicator
Indicator light ON About 2 V
WARN1 light (The indicator light
2 BLU/GRY 2-GND
(Warning 1) comes on by the
Indicator light OFF VB
self-bias)
FLP Detects left-front wheel Rotate the left-front
3 WHT/RED 3-GND About 2.5 V
(Front left pulse) sensor signal wheel.
LG1 Ground for the logic
4 BRN/BLK 4-GND Below 0.3 V
(Logic ground 1) circuit
RRP Detects right-rear wheel Rotate the right-rear
5 GRY/BLK 5-GND About 2.5 V
(Rear right pulse) sensor signal wheel.
TCS control valve is
TCV fully closed. About 0.5V
Detects TCS control
6 RED ( traction 6-GND
valve sensor signal TCS control valve is
control valve) About 4.5 V
fully open.
RLP Detects left-rear wheel Rotate the right-rear
7 GRY/WHT 7-GND About 2.5 V
(Rear left pulse) sensor signal wheel.
About 2.5V
Permission (normal)
(5 V. Duty 50)
TC-INH Inhibition (the coolant
LT Fl TCS, TCS opera-
