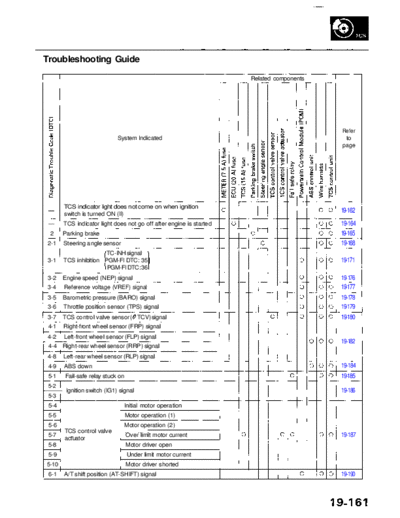

           Main Menu                    Table of Contents




Troubleshooting Guide

                                                                     Related components




                                                                                          Refer
                             System Indicated                                              to
                                                                                          page




       TCS indicator light does not come on when ignition
                                                                                          19-162
       switch is turned ON (II)
 --    TCS indicator light does not go off after engine is started                        19-164
  2    Parking brake                                                                      19-165
 2-1   Steering angle sensor                                                              19-168
                       TC-INH signal
 3-1   TCS inhibition PGM-FI DTC: 35                                                      19-171
                       PGM-FI DTC: 36
 3-2   Engine speed (NEP) signal                                                          19-176
 3-4   Reference voltage (VREF) signal                                                    19-177
 3-5   Barometric pressure (BARO) signal                                                  19-178
 3-6   Throttle position sensor (TPS) signal                                              19-179
 3-7   TCS control valve sensor ( TCV) signal                                             19-180
 4-1   Right-front wheel sensor (FRP) signal
 4-2   Left-front wheel sensor (FLP) signal
                                                                                          19-182
 4-4   Right-rear wheel sensor (RRP) signal
 4-8   Left-rear wheel sensor (RLP) signal
 4-9   ABS down                                                                           19-184
 5-1    Fail-safe relay stuck on                                                          19-185
  5-2
------ Ignition switch (IG1) signal                                                       19-186
  5-3
 5-4                           Initial motor operation
 5-5                               Motor operation (1)
 5-6                               Motor operation (2)
       TCS control valve           ..   .. .
 5-7     ,,                        Over limit motor current                               19-187
       actuator
 5-8                               Motor driver open
 5-9                               Under limit motor current
5-10                               Motor driver shorted
 6-1   A/T shift position (AT-SHIFT) signal                                               19-190
