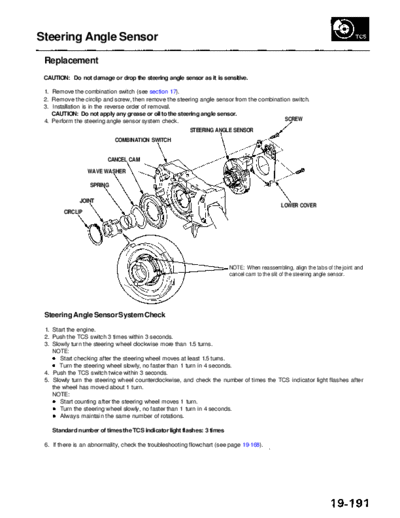

Image preview - the first page of the document



>> Download RL9604S19191A documenatation <<

Text preview - extract from the document

            Main Menu                 Table of Contents


Steering Angle Sensor
 Replacement
 CAUTION: Do not damage or drop the steering angle sensor as it is sensitive.

 1. Remove the combination switch (see section 17).
 2. Remove the circlip and screw, then remove the steering angle sensor from the combination switch.
 3. Installation is in the reverse order of removal.
    CAUTION: Do not apply any grease or oil to the steering angle sensor.
 4. Perform the steering angle sensor system check.                                       SCREW
                                                          STEERING ANGLE SENSOR
                            COMBINATION SWITCH


                         CANCEL CAM

                  WAVE WASHER

                  SPRING

              JOINT
                                                                                             LOWER COVER
        CIRCLIP




                                                                        NOTE: When reassembling, align the tabs of the joint and
                                                                        cancel cam to the slit of the steering angle sensor.




 Steering Angle Sensor System Check

 1. Start the engine.
 2. Push the TCS switch 3 times within 3 seconds.
 3. Slowly turn the steering wheel clockwise more than 1.5 turns.
    NOTE:
       Start checking after the steering wheel moves at least 1.5 turns.
       Turn the steering wheel slowly, no faster than 1 turn in 4 seconds.
 4. Push the TCS switch twice within 3 seconds.
 5. Slowly turn the steering wheel counterclockwise, and check the number of times the TCS indicator light flashes after
    the wheel has moved about 1 turn.
    NOTE:
       Start counting after the steering wheel moves 1 turn.
       Turn the steering wheel slowly, no faster than 1 turn in 4 seconds.
       Always maintain the same number of rotations.

    Standard number of times the TCS indicator light flashes: 3 times

 6. If there is an abnormality, check the troubleshooting flowchart (see page 19-168).
