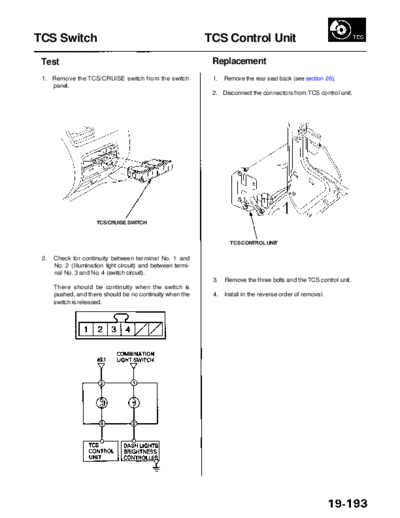

Image preview - the first page of the document



>> Download RL9604S19193A documenatation <<

Text preview - extract from the document

              Main Menu                Table of Contents


TCS Switch                                                    TCS Control Unit
 Test                                                          Replacement
 1. Remove the TCS/CRUISE switch from the switch               1.   Remove the rear seat-back (see section 20).
    panel.
                                                               2. Disconnect the connectors from TCS control unit.




                      TCS/CRUISE SWITCH



                                                                      TCS CONTROL UNIT


 2.   Check for continuity between terminal No. 1 and
      No. 2 (Illumination light circuit) and between termi-
      nal No. 3 and No. 4 (switch circuit).
                                                               3.   Remove the three bolts and the TCS control unit.
      There should be continuity when the switch is
      pushed, and there should be no continuity when the       4. Install in the reverse order of removal.
      switch is released.
