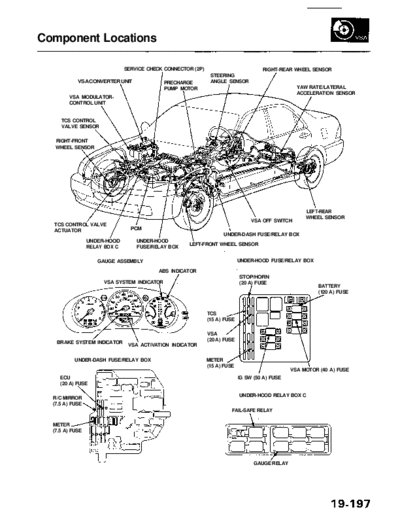

Image preview - the first page of the document
>> Download RL9604S19197A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Component Locations
SERVICE CHECK CONNECTOR (2P) RIGHT-REAR WHEEL SENSOR
STEERING
VSA CONVERTER UNIT PRECHARGE ANGLE SENSOR
PUMP MOTOR YAW RATE/LATERAL
ACCELERATION SENSOR
VSA MODULATOR
CONTROL UNIT
TCS CONTROL
VALVE SENSOR
RIGHT-FRONT
WHEEL SENSOR
LEFT-REAR
WHEEL SENSOR
VSA OFF SWITCH
TCS CONTROL VALVE
ACTUATOR PCM
UNDER-DASH FUSE/RELAY BOX
UNDER-HOOD UNDER-HOOD
RELAY BOX C LEFT-FRONT WHEEL SENSOR
FUSE/RELAY BOX
GAUGE ASSEMBLY UNDER-HOOD FUSE/RELAY BOX
ABS INDICATOR
STOP/HORN
VSA SYSTEM INDICATOR (20 A) FUSE
BATTERY
(120 A) FUSE
TCS
(15 A) FUSE
VSA
BRAKE SYSTEM INDICATOR (20 A) FUSE
VSA ACTIVATION INDICATOR
UNDER-DASH FUSE/RELAY BOX METER
(15 A) FUSE
VSA MOTOR (40 A) FUSE
ECU IG SW (50 A) FUSE
(20 A) FUSE
UNDER-HOOD RELAY BOX C
R/C MIRROR
(7.5 A) FUSE
FAIL-SAFE RELAY
METER
(7.5 A) FUSE
GAUGE RELAY
