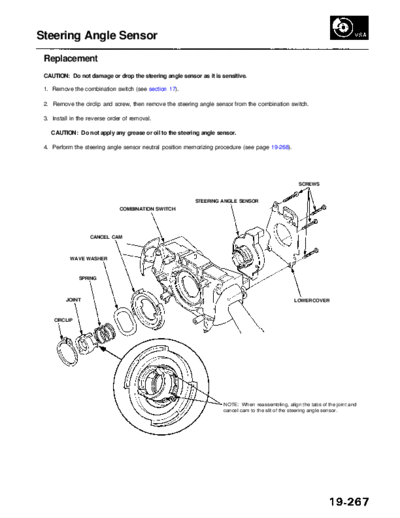

Image preview - the first page of the document
RL9604S19267A


>> Download RL9604S19267A documenatation <<

Text preview - extract from the document
               Main Menu                Table of Contents


Steering Angle Sensor
 Replacement
 CAUTION: Do not damage or drop the steering angle sensor as it is sensitive.

 1. Remove the combination switch (see section 17).

 2. Remove the circlip and screw, then remove the steering angle sensor from the combination switch.

 3. Install in the reverse order of removal.

    CAUTION: Do not apply any grease or oil to the steering angle sensor.

 4. Perform the steering angle sensor neutral position memorizing procedure (see page 19-268).




                                                                                                    SCREWS


                                                            STEERING ANGLE SENSOR
                               COMBINATION SWITCH




                    CANCEL CAM



           WAVE WASHER


                SPRING



         JOINT                                                                                    LOWER COVER



     CIRCLIP




                                                                     NOTE: When reassembling, align the tabs of the joint and
                                                                     cancel cam to the slit of the steering angle sensor.
