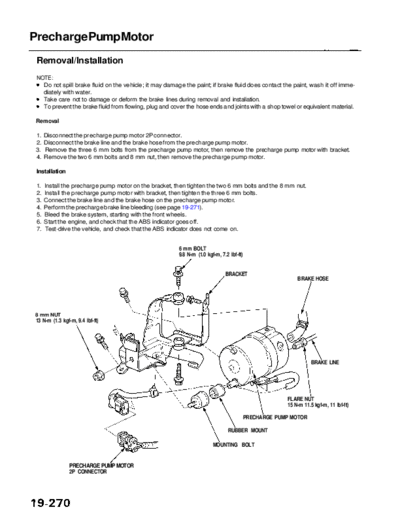

Image preview - the first page of the document



>> Download RL9604S19270A documenatation <<

Text preview - extract from the document

                   Main Menu              Table of Contents


Precharge Pump Motor
 Removal/Installation
 NOTE:
   Do not spill brake fluid on the vehicle; it may damage the paint; if brake fluid does contact the paint, wash it off imme-
   diately with water.
   Take care not to damage or deform the brake lines during removal and installation.
   To prevent the brake fluid from flowing, plug and cover the hose ends and joints with a shop towel or equivalent material.

 Removal

 1.   Disconnect the precharge pump motor 2P connector.
 2.   Disconnect the brake line and the brake hose from the precharge pump motor.
 3.   Remove the three 6 mm bolts from the precharge pump motor, then remove the precharge pump motor with bracket.
 4.   Remove the two 6 mm bolts and 8 mm nut, then remove the precharge pump motor.

 Installation

 1.   Install the precharge pump motor on the bracket, then tighten the two 6 mm bolts and the 8 mm nut.
 2.   Install the precharge pump motor with bracket, then tighten the three 6 mm bolts.
 3.   Connect the brake line and the brake hose on the precharge pump motor.
 4.   Perform the precharge brake line bleeding (see page 19-271).
 5.   Bleed the brake system, starting with the front wheels.
 6.   Start the engine, and check that the ABS indicator goes off.
 7.   Test-drive the vehicle, and check that the ABS indicator does not come on.


                                                         6 mm BOLT
                                                         9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)


                                                                               BRACKET
                                                                                                        BRAKE HOSE




8 mm NUT
 13 N-m (1.3 kgf-m, 9.4 Ibf-ft)




                                                                                                               BRAKE LINE




                                                                                                    FLARE NUT
                                                                                                    15 N-m 11.5 kgf-m, 11 Ibf-ft)

                                                                                       PRECHARGE PUMP MOTOR

                                                                                RUBBER MOUNT

                                                                         MOUNTING BOLT


                 PRECHARGE PUMP MOTOR
                 2P CONNECTOR
