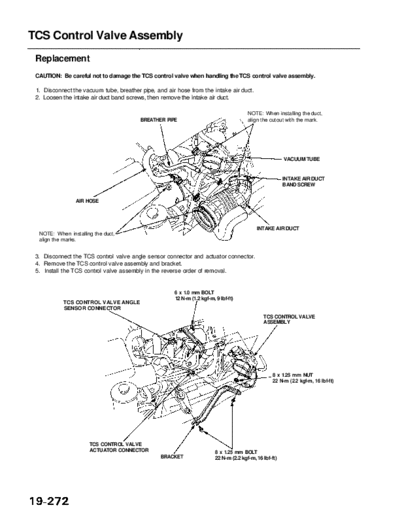

Image preview - the first page of the document



>> Download RL9604S19272A documenatation <<

Text preview - extract from the document

                Main Menu                Table of Contents


TCS Control Valve Assembly
 Replacement
 CAUTION: Be careful not to damage the TCS control valve when handling the TCS control valve assembly.

 1. Disconnect the vacuum tube, breather pipe, and air hose from the intake air duct.
 2. Loosen the intake air duct band screws, then remove the intake air duct.

                                                                                         NOTE: When installing the duct,
                                         BREATHER PIPE                                   align the cutout with the mark.




                                                                                                          VACUUM TUBE


                                                                                                          INTAKE AIR DUCT
                                                                                                          BAND SCREW


                AIR HOSE




                                                                                             INTAKE AIR DUCT
  NOTE: When installing the duct,
  align the marks.


 3. Disconnect the TCS control valve angle sensor connector and actuator connector.
 4. Remove the TCS control valve assembly and bracket.
 5. Install the TCS control valve assembly in the reverse order of removal.


                                                       6 x 1.0 mm BOLT
                                                       12 N-m (1.2 kgf-m, 9 Ibf-ft)
            TCS CONTROL VALVE ANGLE
            SENSOR CONNECTOR
                                                                                                TCS CONTROL VALVE
                                                                                                ASSEMBLY




                                                                                                     8 x 1.25 mm NUT
                                                                                                     22 N-m (2.2 kgf-m, 16 Ibf-ft)




                      TCS CONTROL VALVE
                      ACTUATOR CONNECTOR                                  8 x 1.25 mm BOLT
                                                 BRACKET                  22 N-m (2.2 kgf-m, 16 Ibf-ft)
