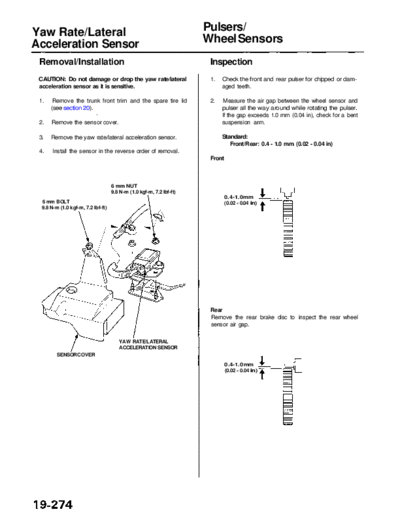

Main Menu Table of Contents
Yaw Rate/Lateral Pulsers/
Acceleration Sensor Wheel Sensors
Removal/Installation Inspection
CAUTION: Do not damage or drop the yaw rate/lateral 1. Check the front and rear pulser for chipped or dam-
acceleration sensor as it is sensitive. aged teeth.
1. Remove the trunk front trim and the spare tire lid 2. Measure the air gap between the wheel sensor and
(see section 20). pulser all the way around while rotating the pulser.
If the gap exceeds 1.0 mm (0.04 in), check for a bent
2. Remove the sensor cover. suspension arm.
3. Remove the yaw rate/lateral acceleration sensor. Standard:
Front/Rear: 0.4 - 1.0 mm (0.02 - 0.04 in)
4. Install the sensor in the reverse order of removal.
Front
6 mm NUT
9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
0.4-1.0 mm
6 mm BOLT (0.02 - 0.04 in)
9.8 N-m (1.0 kgf-m, 7.2 Ibf-ft)
Rear
Remove the rear brake disc to inspect the rear wheel
sensor air gap.
YAW RATE/LATERAL
ACCELERATION SENSOR
SENSOR COVER
0.4-1.0 mm
(0.02 - 0.04 in)
