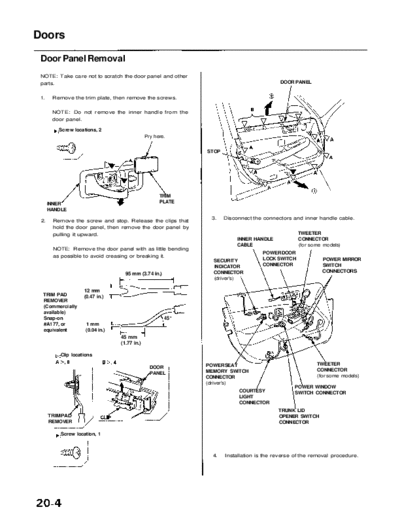

Image preview - the first page of the document



>> Download RL9604S20004A documenatation <<

Text preview - extract from the document

                 Main Menu                 Table of Contents


Doors
 Door Panel Removal
 NOTE: Take care not to scratch the door panel and other
 parts.                                                                                    DOOR PANEL


 1.    Remove the trim plate, then remove the screws.

       NOTE: Do not remove the inner handle from the
       door panel.

         Screw locations, 2
                                               Pry here.


                                                               STOP




                                                     TRIM
      INNER                                          PLATE
      HANDLE

 2.    Remove the screw and stop. Release the clips that        3.    Disconnect the connectors and inner handle cable.
       hold the door panel, then remove the door panel by
       pulling it upward.                                                                          TWEETER
                                                                           INNER HANDLE            CONNECTOR
                                                                           CABLE                   (for some models)
       NOTE: Remove the door panel with as little bending
                                                                                     POWER DOOR
       as possible to avoid creasing or breaking it.                                 LOCK SWITCH
                                                                 SECURITY                                   POWER MIRROR
                                                                 INDICATOR           CONNECTOR              SWITCH
                                                                 CONNECTOR                                  CONNECTORS
                                    95 mm (3.74 in.)
                                                                 (driver's)

                     12 mm
  TRIM PAD           (0.47 in.)
  REMOVER
  (Commercially
  available)
  Snap-on                                              45
