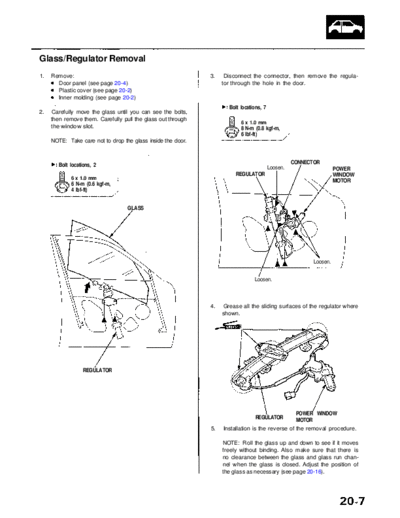

Image preview - the first page of the document

>> Download RL9604S20007A documenatation <<

Text preview - extract from the document

Main Menu Table of Contents

Glass/Regulator Removal
1. Remove: 3. Disconnect the connector, then remove the regula-
Door panel (see page 20-4) tor through the hole in the door.
Plastic cover (see page 20-2)
Inner molding (see page 20-2)
Bolt locations, 7
2. Carefully move the glass until you can see the bolts,
then remove them. Carefully pull the glass out through
6 x 1.0 mm
the window slot. 8 N-m (0.8 kgf-m,
6 Ibf-ft)
NOTE: Take care not to drop the glass inside the door.

Bolt locations, 2 CONNECTOR
Loosen. POWER
REGULATOR WINDOW
6 x 1.0 mm
MOTOR
6 N-m (0.6 kgf-m,
4 Ibf-ft)

GLASS

Loosen.

4. Grease all the sliding surfaces of the regulator where
shown.

REGULATOR

POWER WINDOW
REGULATOR
MOTOR
5. Installation is the reverse of the removal procedure.

NOTE: Roll the glass up and down to see if it moves
freely without binding. Also make sure that there is
no clearance between the glass and glass run chan-
nel when the glass is closed. Adjust the position of
the glass as necessary (see page 20-16).
