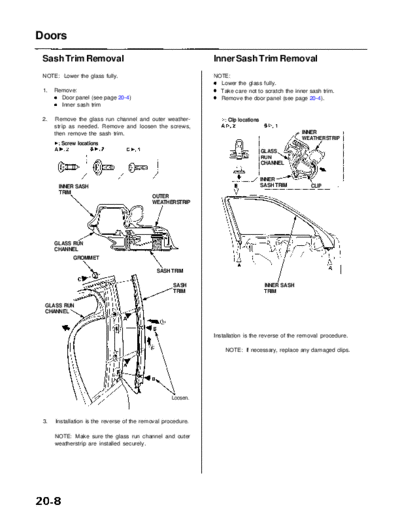

Image preview - the first page of the document



>> Download RL9604S20008A documenatation <<

Text preview - extract from the document

             Main Menu                 Table of Contents


Doors
 Sash Trim Removal                                            Inner Sash Trim Removal
 NOTE: Lower the glass fully.                                 NOTE:
                                                                Lower the glass fully.
 1.   Remove:                                                   Take care not to scratch the inner sash trim.
        Door panel (see page 20-4)                              Remove the door panel (see page 20-4).
        Inner sash trim

 2.   Remove the glass run channel and outer weather-              Clip locations
      strip as needed. Remove and loosen the screws,
      then remove the sash trim.                                                                  INNER
                                                                                                  WEATHERSTRIP
        Screw locations
                                                                                    GLASS
                                                                                    RUN
                                                                                    CHANNEL

                                                                                    INNER
       INNER SASH                                                                   SASH TRIM       CLIP
       TRIM
                                            OUTER
                                            WEATHERSTRIP




      GLASS RUN
      CHANNEL
            GROMMET

                                              SASH TRIM

                                                    SASH                             INNER SASH
                                                    TRIM                             TRIM

  GLASS RUN
  CHANNEL



                                                              Installation is the reverse of the removal procedure.

                                                                  NOTE: If necessary, replace any damaged clips.




                                                    Loosen.



 3.   Installation is the reverse of the removal procedure.

      NOTE: Make sure the glass run channel and outer
      weatherstrip are installed securely.
