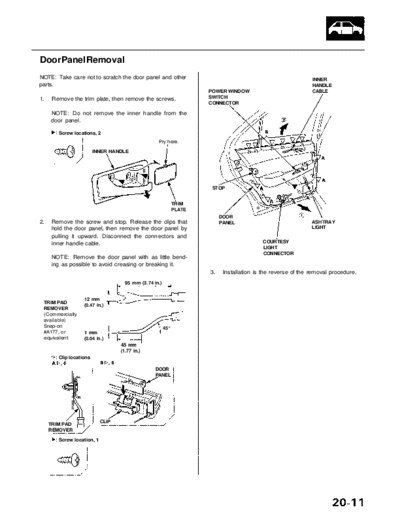

Image preview - the first page of the document



>> Download RL9604S20011A documenatation <<

Text preview - extract from the document

                Main Menu                       Table of Contents




Door Panel Removal
NOTE: Take care not to scratch the door panel and other                                                         INNER
parts.                                                                                                          HANDLE
                                                                       POWER WINDOW                             CABLE
1.    Remove the trim plate, then remove the screws.                   SWITCH
                                                                       CONNECTOR

     NOTE: Do not remove the inner handle from the
     door panel.

        Screw locations, 2
                                                       Pry here.

                         INNER HANDLE




                                                                        STOP


                                                               TRIM
                                                               PLATE
                                                                            DOOR
2.    Remove the screw and stop. Release the clips that                     PANEL                               ASHTRAY
      hold the door panel, then remove the door panel by                                                        LIGHT
      pulling it upward. Disconnect the connectors and
      inner handle cable.                                                                   COURTESY
                                                                                            LIGHT
                                                                                            CONNECTOR
      NOTE: Remove the door panel with as little bend-
      ing as possible to avoid creasing or breaking it.
                                                                       3.    Installation is the reverse of the removal procedure.
                                     95 mm (3.74 in.)


                   12 mm
 TRIM PAD
                   (0.47 in.)
 REMOVER
 (Commercially
 available)
 Snap-on                                                 45
