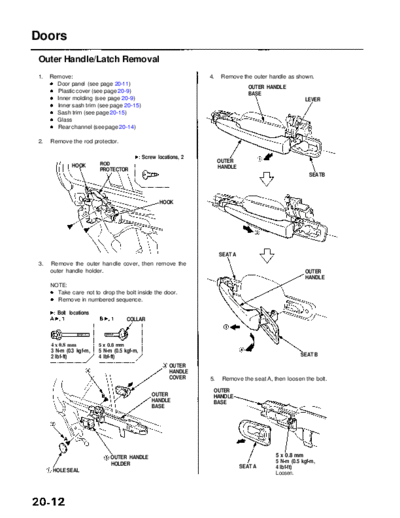

Image preview - the first page of the document



>> Download RL9604S20012A documenatation <<

Text preview - extract from the document

               Main Menu                      Table of Contents


Doors
 Outer Handle/Latch Removal
 1.   Remove:                                                      4.    Remove the outer handle as shown.
        Door panel (see page 20-11)
                                                                                    OUTER HANDLE
        Plastic cover (see page 20-9)                                               BASE
        Inner molding (see page 20-9)                                                                    LEVER
        Inner sash trim (see page 20-15)
        Sash trim (see page 20-15)
        Glass
        Rear channel (see page 20-14)

 2.   Remove the rod protector.

                                              Screw locations, 2
                                                                        OUTER
               HOOK        ROD
                                                                        HANDLE
                           PROTECTOR
                                                                                                           SEAT B



                                                      HOOK




                                                                        SEAT A
 3.   Remove the outer handle cover, then remove the
      outer handle holder.                                                                               OUTER
                                                                                                         HANDLE
      NOTE:
        Take care not to drop the bolt inside the door.
        Remove in numbered sequence.

        Bolt locations
                                       COLLAR



      4 x 0.8 mm          5 x 0.8 mm
      3 N-m (0.3 kgf-m,   5 N-m (0.5 kgf-m,
      2 Ibf-ft)           4 Ibf-ft)                                                                    SEAT B
                                                          OUTER
                                                          HANDLE
                                                          COVER    5.    Remove the seat A, then loosen the bolt.

                                                                    OUTER
                                                  OUTER             HANDLE
                                                  HANDLE            BASE
                                                  BASE




                                 OUTER HANDLE                                                5 x 0.8 mm
                                 HOLDER                                                      5 N-m (0.5 kgf-m,
                                                                                 SEAT A      4 Ibf-ft)
       HOLE SEAL
                                                                                             Loosen.
              Main Menu                 Table of Contents




6.   Slide the outer handle base, and remove it from the
     door. Disconnect the connector, detach the clips,
     and remove the lock crank, then remove the latch
     with the outer handle base through the hole in the
     door. Pry the outer handle rod out from the outer
     handle base using diagonal cutters.

     NOTE:
