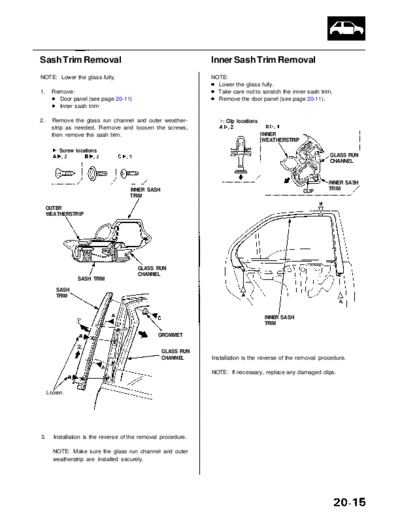

Image preview - the first page of the document



>> Download RL9604S20015A documenatation <<

Text preview - extract from the document

               Main Menu                 Table of Contents




Sash Trim Removal                                              Inner Sash Trim Removal
NOTE: Lower the glass fully.                                   NOTE:
                                                                 Lower the glass fully.
1.     Remove:                                                   Take care not to scratch the inner sash trim.
         Door panel (see page 20-11)                             Remove the door panel (see page 20-11).
         Inner sash trim

2.     Remove the glass run channel and outer weather-              Clip locations
      strip as needed. Remove and loosen the screws,
      then remove the sash trim.                                                     INNER
                                                                                     WEATHERSTRIP
          Screw locations
                                                                                                             GLASS RUN
                                                                                                             CHANNEL


                                                                                                             INNER SASH
                                     INNER SASH                                                              TRIM
                                                                                                    CLIP
                                     TRIM

     OUTER
     WEATHERSTRIP




                                        GLASS RUN
                                        CHANNEL
                 SASH TRIM

        SASH
        TRIM


                                                                                     INNER SASH
                                                                                     TRIM

                                                GROMMET


                                                  GLASS RUN
                                                  CHANNEL      Installation is the reverse of the removal procedure.

                                                               NOTE: If necessary, replace any damaged clips.


     Loosen.




3.     Installation is the reverse of the removal procedure.

       NOTE: Make sure the glass run channel and outer
       weatherstrip are installed securely.
