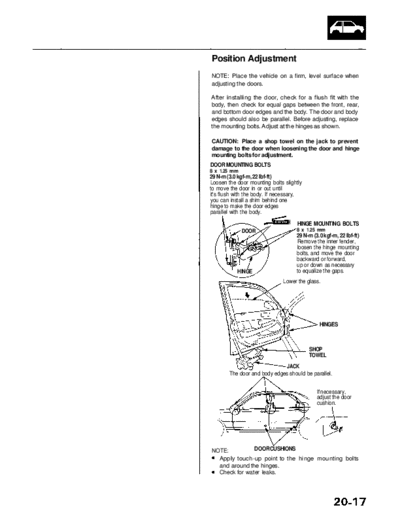

Image preview - the first page of the document
>> Download RL9604S20017A documenatation <<
Text preview - extract from the document
Main Menu Table of Contents
Position Adjustment
NOTE: Place the vehicle on a firm, level surface when
adjusting the doors.
After installing the door, check for a flush fit with the
body, then check for equal gaps between the front, rear,
and bottom door edges and the body. The door and body
edges should also be parallel. Before adjusting, replace
the mounting bolts. Adjust at the hinges as shown.
CAUTION: Place a shop towel on the jack to prevent
damage to the door when loosening the door and hinge
mounting bolts for adjustment.
DOOR MOUNTING BOLTS
8 x 1.25 mm
29 N-m (3.0 kgf-m, 22 Ibf-ft)
Loosen the door mounting bolts slightly
to move the door in or out until
it's flush with the body. If necessary,
you can install a shim behind one
hinge to make the door edges
parallel with the body.
HINGE MOUNTING BOLTS
DOOR 8 x 1.25 mm
29 N-m (3.0 kgf-m, 22 Ibf-ft)
Remove the inner fender,
loosen the hinge mounting
bolts, and move the door
backward or forward,
up or down as necessary
HINGE to equalize the gaps.
Lower the glass.
HINGES
SHOP
TOWEL
JACK
The door and body edges should be parallel.
If necessary,
adjust the door
cushion.
NOTE: DOOR CUSHIONS
Apply touch-up point to the hinge mounting bolts
and around the hinges.
Check for water leaks.
