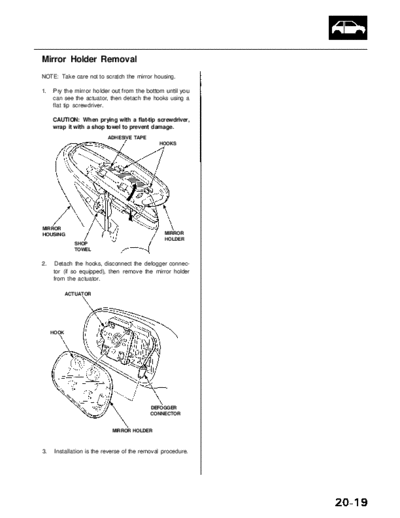

              Main Menu                 Table of Contents




Mirror Holder Removal
NOTE: Take care not to scratch the mirror housing.

1.   Pry the mirror holder out from the bottom until you
     can see the actuator, then detach the hooks using a
     flat tip screwdriver.

     CAUTION: When prying with a flat-tip screwdriver,
     wrap it with a shop towel to prevent damage.
                           ADHESIVE TAPE
                                               HOOKS




MIRROR
HOUSING                                           MIRROR
                                                  HOLDER
              SHOP
              TOWEL


2.    Detach the hooks, disconnect the defogger connec-
     tor (if so equipped), then remove the mirror holder
     from the actuator.

            ACTUATOR




     HOOK




                                            DEFOGGER
                                            CONNECTOR


                            MIRROR HOLDER



3.    Installation is the reverse of the removal procedure.
